Product Summary

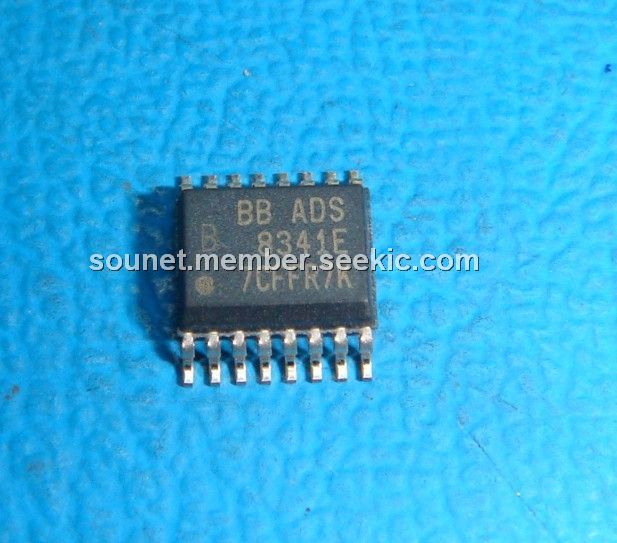

The ADS8341EB is a 4-channel, 16-bit sampling Analog-to- Digital (A/D) converter with a synchronous serial interface. Typical power dissipation is 8mW at a 100kHz throughput rate and a +5V supply. The reference voltage (VREF) of the ADS8341EB can be varied between 500mV and VCC, providing a corresponding input voltage range of 0V to VREF. The device includes a shutdown mode that reduces power dissipation to under 15μW. The ADS8341EB is tested down to 2.7V operation. Low power, high speed, and an onboard multiplexer make the ADS8341EB ideal for battery-operated systems such as personal digital assistants, portable multi-channel data loggers, and measurement equipment. The serial interface also provides low-cost isolation for remote data acquisition. The ADS8341EB is available in an SSOP-16 package and is ensured over the –40℃ to +85℃ temperature range.

Parametrics

ADS8341EB absolute maximum ratings: (1)+VCC to GND: –0.3V to +6V; (2)Analog Inputs to GND: –0.3V to +VCC + 0.3V; (3)Digital Inputs to GND: –0.3V to +6V; (4)Power Dissipation: 250mW; (5)Maximum Junction Temperature: +150℃; (6)Operating Temperature Range: –40℃ to +85℃; (7)Storage Temperature Range: –65℃ to +150℃; (8)Lead Temperature (soldering, 10s): +300℃.

Features

ADS8341EB features: (1)Pin for pin with ADS7841; (2)Single supply: 2.7V to 5V; (3)4-channel single-ended or 2-channel differential input; (4)Up to 100kHz conversion rate; (5)86dB sinad; (6)Serial interface; (7)SSOP-16 package.

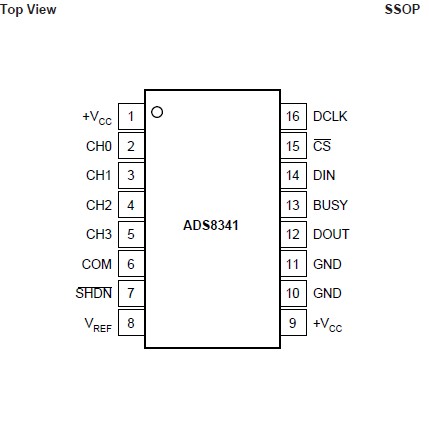

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADS8341EB
ADS8341EB

Texas Instruments

ADC (A/D Converters) 16-Bit 4-Ch Serial Output Sampling

Data Sheet

0-1: $11.87
1-10: $10.80
10-25: $9.98
25-50: $9.64
ADS8341EB/2K5
ADS8341EB/2K5

Texas Instruments

ADC (A/D Converters) 16-Bit 4-Ch Serial Output Sampling

Data Sheet

0-2002: $5.77
2002-2500: $5.77
ADS8341EB/2K5G4
ADS8341EB/2K5G4

Texas Instruments

ADC (A/D Converters) 16-Bit 4-Ch Serial Output Sampling

Data Sheet

0-2002: $5.77
2002-2500: $5.77
ADS8341EBG4
ADS8341EBG4

Texas Instruments

ADC (A/D Converters) 16-Bit 4-Ch Serial Output Sampling

Data Sheet

0-41: $9.98
41-50: $9.64
50-100: $7.25
100-250: $7.15
