Product Summary

The CP2102 is a highly-integrated USB-to-UART Bridge Controller providing a simple solution for updating RS-232 designs to USB using a minimum of components and PCB space. The CP2102 includes a USB 2.0 full-speed function controller, USB transceiver, oscillator, EEPROM, and asynchronous serial data bus (UART) with full modem control signals in a compact 5 x 5 mm QFN-28 package. No other external USB components are required. The CP2102 on-chip EEPROM may be used to customize the USB Vendor ID, Product ID, Product Description String, Power Descriptor, Device Release Number, and Device Serial Number as desired for OEM applications. The CP2102 is programmed on-board via the USB, allowing the programming step to be easily integrated into the product manufacturing and testing process.

Parametrics

CP2102 absolute maximum ratings: 1)Ambient Temperature under Bias: –55 to 125℃; (2)Storage Temperature: –65 to 150℃; (3)Voltage on any I/O Pin or RST with respect to GND: -0.3 to 5.8V; (4)Voltage on VDD with respect to GND: –0.3 to 4.2V; (5)Maximum Total Current through VDD and GND: 500mA; (6)Maximum Output Current sunk by RST or any I/O pin: 100mA.

Features

CP2102 features: (1)Single-Chip USB to UART Data Transfer; (2)Integrated USB transceiver; no external resistors required; (3)Integrated clock; no external crystal required; (4)Integrated 1024-Byte EEPROM for vendor ID, product ID, serial number, power descriptor, release number, and product description strings; (5)On-chip power-on reset circuit; (6)On-chip voltage regulator: 3.3 V output; (7)100% pin and software compatible with CP2101; (8)Baud rates: 300 bps to 1 Mbits; (9)576 Byte receive buffer; 640 byte transmit buffer; (10)Hardware or X-On/X-Off handshaking supported; (11)Event character support; (12)Line break transmission.

Diagrams

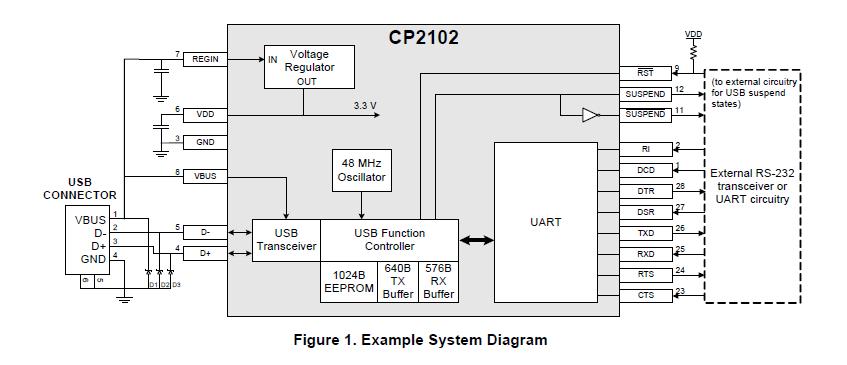

CP2102 Example System Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

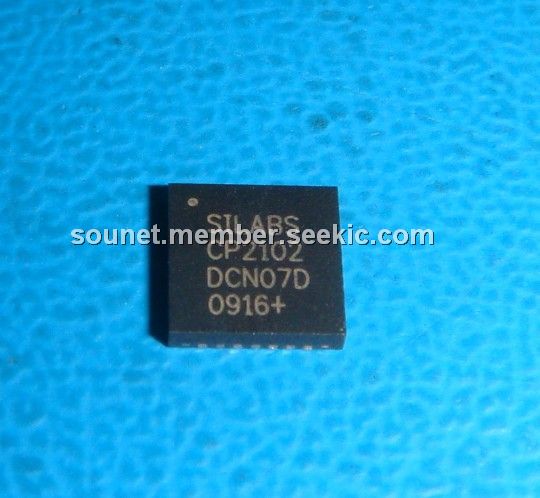

CP2102
CP2102
Silicon Labs
Peripheral Drivers & Components (PCIs) USE 634-CP2102-GM
Data Sheet
Negotiable
CP2102EK
CP2102EK
Silicon Labs
Interface Development Tools for CP2102 Enhanced USB-UART Bridge Chip
Data Sheet
0-1: $17.40
CP2102-GM
CP2102-GM
Silicon Labs
Peripheral Drivers & Components (PCIs) USB to UART Bdg Chip
Data Sheet
0-1: $1.65
1-25: $1.59
25-100: $1.52
100-1000: $1.39
CP2102-GMR
CP2102-GMR
Silicon Labs
Peripheral Drivers & Components (PCIs) USB-TO-UART BRIDGE
Data Sheet
0-1: $1.65
1-25: $1.59
25-50: $1.56
50-100: $1.53
CP2102R
CP2102R
Silicon Labs
Peripheral Drivers & Components (PCIs) Enhanced USB to UART Bridge Chip
Data Sheet
Negotiable
