Product Summary

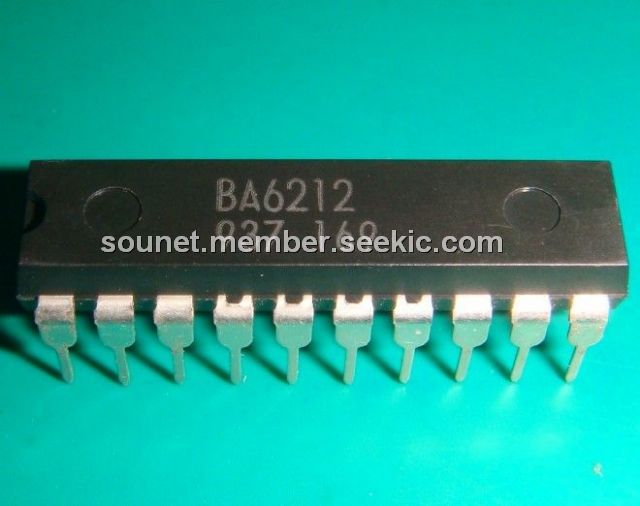

The BA6212 is a monolithic IC including 8 circuits and capable of high current drive. Capable of using a current as high as 400mA, it has a strobe pin, and is thus ideal for use as a driver circuit in thermal printers. Its input can be directly coupled to CMOS devices. The applications of the BA6212 include Thermal printers, Motors, Relays and LEDs and other drivers.
Parametrics
BA6212 absolute maximum ratings: (1)Power supply voltage, VCC: 7 V; (2)Power dissipation, Pd: 1100mW; (3)Operating temperature, Topr: -25 to 75℃; (4)Storage temperature, Tstg: -55 to 125℃; (5)Maximum output current, IOUT: 400 mA; (6)Maximum output voltage, VOUT: 14 V; (7)Maximum input voltage, VIN: VCC V.
Features
BA6212 features: (1)High current drive capability of 400mA (Max); (2)8 circuits included; (3)Equipped with a strobe pin; (4)Easy installation due to inputs and outputs being aligned in the same direction; (5)Input can be directly connected to CMOS devices.

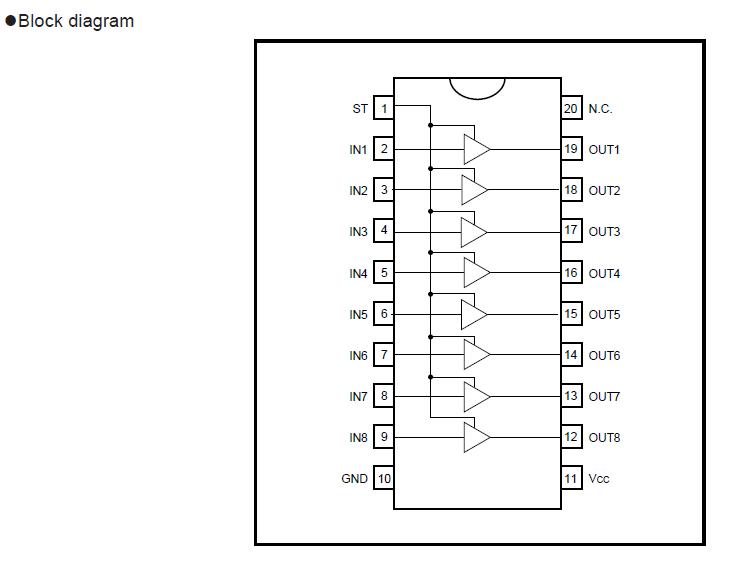

Diagrams
