Product Summary
The C67401AJ is a fall-through high speed first-in first-out (FIFO) memory organized 64 words by 4 bits and 64 words by 5 bits respectively. A 15MHz data rate allows usage in high speed tape or disc controllers and communications buffer applications. Both word length and FIFO depeth are expandable.
Parametrics
C67401AJ absolute maximum ratings: (1)supply voltage, VCC: -0.5 to 7.0V; (2)input voltage: -1.5 to 7.0V; (3)off-state output voltage: -0.5 to 5.5V; (4)storage temperature: -65 to 150℃.
Features
C67401AJ features: (1)cholce of 15 and 10 MHz shift-out/shift-in rates; (2)cholce of 4-bits or 5-bits data width; (3)TTL inputs and outputs; (4)readily expandable in the word and bit dimensions; (5)structured pinputs, Output pins directly opposite corresponding input pins; (6)Asynchrous operation.

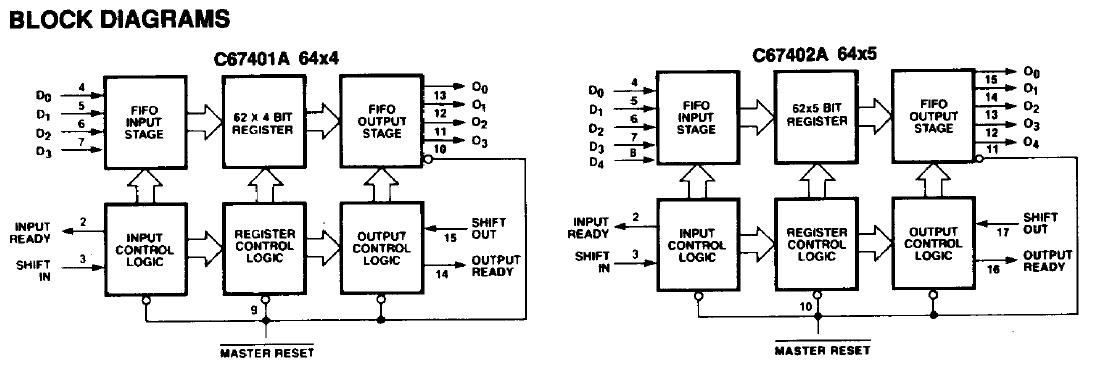

Diagrams
