Product Summary

The PIC16F874A-I/P is a 28/40-pin enhanced flash microcontroller. It features 128 bytes of EEPROM data memory, self programming, an ICD, 2 Comparators, 8 channels of 10-bit Analog-to-Digital (A/D) converter, 2 capture/compare/PWM functions, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI) or the 2-wire Inter-Integrated Circuit (I2C) bus and a Universal Asynchronous Receiver Transmitter (USART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.

Parametrics

Absolute maximum ratings: (1)Ambient temperature under bias: -55 to +125°C; (2)Storage temperature: -65°C to +150°C; (3)Voltage on any pin with respect to VSS (except VDD, MCLR. and RA4): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3 to +7.5V; (5)Voltage on MCLR with respect to VSS (Note 2): 0 to +14V; (6)Voltage on RA4 with respect to Vss: 0 to +8.5V; (7)Total power dissipation (Note 1): 1.0W; (8)Maximum current out of VSS pin: 300 mA; (9)Maximum current into VDD pin: 250 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ± 20 mA; (12)Maximum output current sunk by any I/O pin: 25 mA; (13)Maximum output current sourced by any I/O pin: 25 mA; (14)Maximum current sunk by PORTA, PORTB and PORTE (combined) (Note 3): 200 mA; (15)Maximum current sourced by PORTA, PORTB and PORTE (combined) (Note 3): 200 mA; (16)Maximum current sunk by PORTC and PORTD (combined) (Note 3): 200 mA; (17)Maximum current sourced by PORTC and PORTD (combined) (Note 3): 200 mA.

Features

Features: (1)10-bit, up to 8-channel Analog-to-Digital Converter (A/D); (2)Brown-out Reset (BOR); (3)Analog Comparator module with: Two analog comparators; Programmable on-chip voltage reference(VREF) module; Programmable input multiplexing from device; inputs and internal voltage reference; Comparator outputs are externally accessible; (4)100,000 erase/write cycle Enhanced Flash program memory typical; (5)1,000,000 erase/write cycle Data EEPROM memory typical; (6)Data EEPROM Retention > 40 years; (7)Self-reprogrammable under software control; (8)In-Circuit Serial Programming(ICSP)via two pins; (9)Single-supply 5V In-Circuit Serial Programming; (10)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (11)Programmable code protection; (12)Power saving Sleep mode; (13)Selectable oscillator options; (14)In-Circuit Debug (ICD) via two pins.

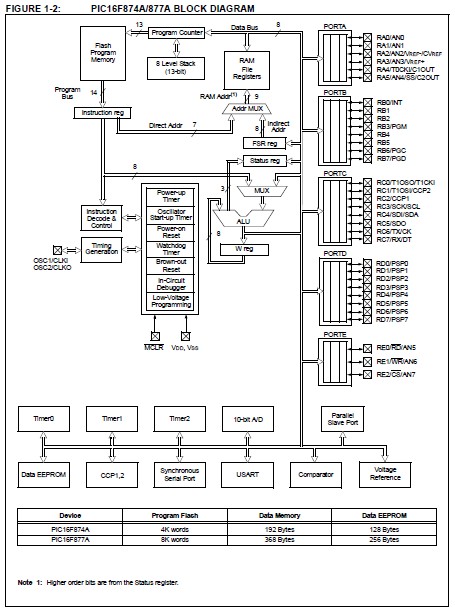

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC16F874A-I/P
PIC16F874A-I/P

Microchip Technology

8-bit Microcontrollers (MCU) 7KB 192 RAM 33 I/O

Data Sheet

0-1: $3.44
1-10: $2.75
10-25: $2.68
25-100: $2.61
PIC16F874A-I/PREL
PIC16F874A-I/PREL

Other


Data Sheet

Negotiable
PIC16F874A-I/PT
PIC16F874A-I/PT

Microchip Technology

8-bit Microcontrollers (MCU) 7KB 192 RAM 33 I/O

Data Sheet

0-1: $3.96
1-10: $3.17
10-25: $3.08
25-100: $3.00
PIC16F874A-I/PTG
PIC16F874A-I/PTG

Microchip Technology

8-bit Microcontrollers (MCU) 7KB 192 RAM 33 I/O Lead Free Package

Data Sheet

Negotiable
