Product Summary

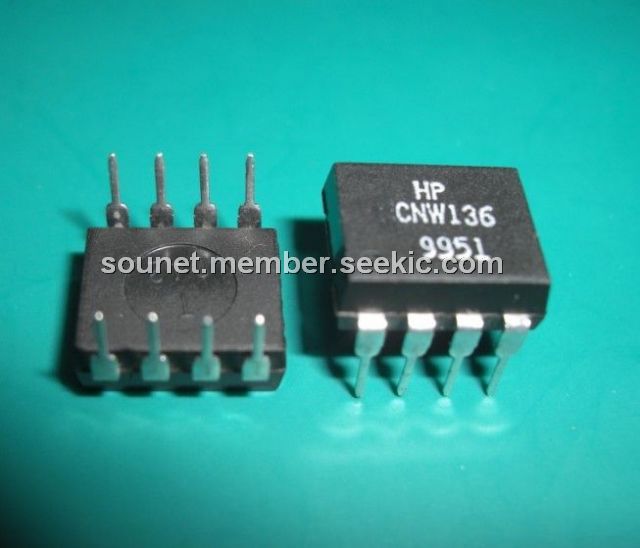

The CNW136 is a high voltage and fast switching optocoupler. The CNW136 consists of an AIGaAs LED and a silicon photodetector. A wide body encapsulation is used to provide creepage and clearance dimensions suitable for safety approval by regulatory agencies worldwide.Cirremt transfer ratio (CTR) for the CNW136 is 7% minimum at IF=16mA. The applications of the CNW136 include high voltage insulation, video signal isolation, feedback elemnt in switched mode power supplies, high speed logic ground isolation and power transistors isolation in motor drives.
Parametrics
CNW136 absolute maximum ratings: (1)storage temperature: -55 to 125℃; (2)operating temperature: -55 to 85℃; (3)lead solder temperature : 260℃ for 10s; (4)reverse input voltage, VR(pin 2-3): 5V; (5)input power dissipation (up to 70℃): 250mW; (6)average output current, Io (pin 6): 10mA; (7)emitter-base reverse voltage (pin 5-7): 5V; (8)output voltage, Vo (pin 6-5): -0.5 to 20V; (9)supply voltage, VCC (pin8-5): -0.5 to 30V; (10)base current, IB (pin 7): 5mA; (11)output power dissipation: 100mW.
Features
CNW136 features: (1)high speed: 1Mbit/s; (2)TTL compatible; (3)performance guaranteed over temperature 0 to 70℃; (4)pin compatible with 6N135/6 and HCPL-4502/3; (5)very high common mode rejection for CNW4503; (6)line receivers; (7)analog signal ground isolation; (8)500Vrms/1 minute insulation withstand capability; (9)wordwide safety.

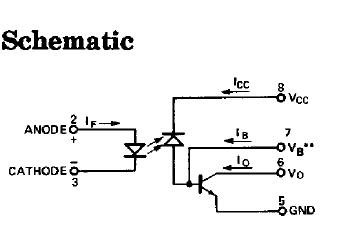

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CNW136 |
Fairchild Semiconductor |
High Speed Optocouplers DIP8 HISPEED OPTCPLR |
Data Sheet |
Negotiable |
|
||||
|
CNW136300 |
Fairchild Semiconductor |
High Speed Optocouplers |
Data Sheet |
Negotiable |
|
||||
|
CNW136S |
Fairchild Semiconductor |
High Speed Optocouplers |
Data Sheet |
Negotiable |
|
||||
