Product Summary
The DS1804Z-010 is a nonvolatile digital potentiometer that has 100 positions. The device provides an ideal method for low-cost trimming applications using a CPU or manual control input with minimal external circuitry. Wiper position of the DS1804Z-010 can be stored in EEPROM memory on demand. This port consists of the control inputs CS, INC, and U/D. The DS1804Z-010 is available in three resistor grades, which include a 10kΩ, 50kΩ, and 100kΩ. The device is provided in an industrial temperature grade. Additionally, the DS1804Z-010 will operate from 3V or 5V supplies and is ideal for portable application requirements. Three packaging options are available and include the 8-pin (300 mils) DIP, 8-pin (150 mils) SO, and 8-pin (118 mils) μSOP.
Parametrics
DS1804Z-010 absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -1.0V to +6.0V; (2)Operating Temperature Range: -40 to +85℃; (3)Storage Temperature Range: -55 to +125℃; (4)Lead Temperature (soldering, 10s): +300℃; (5)Soldering Temperature (reflow): +260℃.
Features
DS1804Z-010 features: (1)Single 100-Position Taper Potentiometer; (2)Nonvolatile (NV) On-Demand Wiper Storage; (3)Operates from 3V or 5V Supplies; (4)Up/Down, Increment-Controlled Interface; (5)Available in 8-Pin (300 mils) DIP, 8-Pin (150 mils) SO, and 8-Pin (118 mils) SOP; (6)-40 to +85℃ Operating Temperature Range; (7)Standard Resistance Values: 10k.

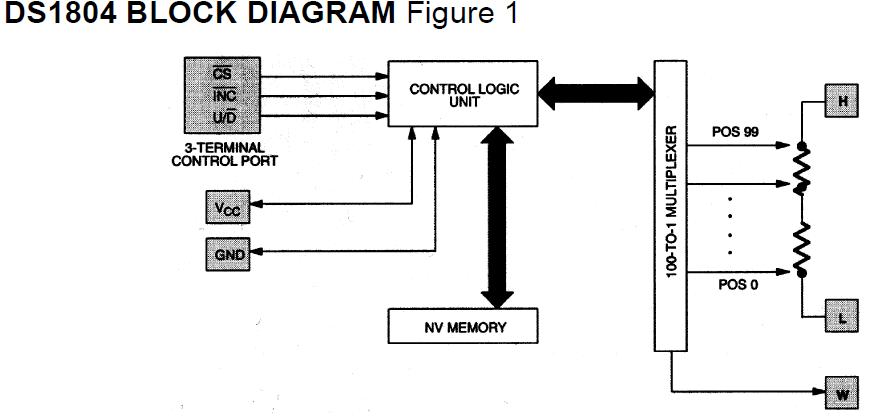

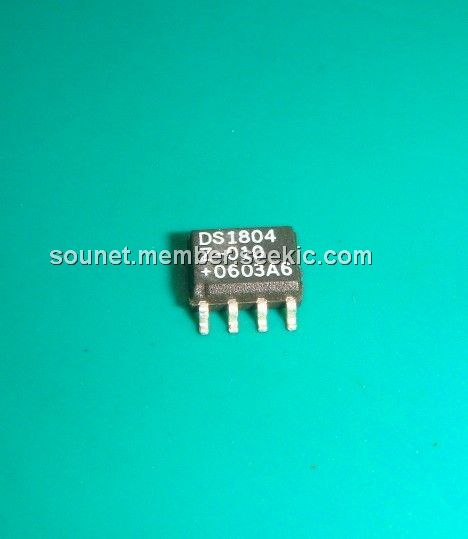

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS1804Z-010 |
Maxim Integrated Products |
Digital Potentiometer ICs |
Data Sheet |
Negotiable |
|
||||||||||||
|
DS1804Z-010/T&R |
Maxim Integrated Products |
Digital Potentiometer ICs NV Trimmer |
Data Sheet |
|
|
||||||||||||
|
DS1804Z-010+ |
Maxim Integrated Products |
Digital Potentiometer ICs NV Trimmer |
Data Sheet |
|
|
||||||||||||
|
DS1804Z-010+T&R |
Maxim Integrated Products |
Digital Potentiometer ICs NV Trimmer |
Data Sheet |
|
|
||||||||||||
