Product Summary

The PAF500F48-12 is a 24V & 48V Input Full Brick DC-DC Converter.

Parametrics

PAF500F48-12 absolute maximum ratings: (1)Nominal Output Voltage: 12 VDC; (2)Output Current (Max): 42 A; (3)Max Output Power: 504 W; (4)Efficiency (Typ): 89 %; (5)Input Voltage range: 19-36 or 36-76 VDC; (6)Input Current (Typ) (24V/48V): 23.8 / 12.1 A; (7)Output Voltage Accuracy: ±1 %; (8)Output Voltage Adjustment: 7.2 - 13.2 VDC; (9)Max Ripple & Noise: 200 mV; (10)Max Line Regulation: 24 mV; (11)Max Load Regulation: 24 mV; (12)Overcurrent Protection: 105 - 140%; (13)Overvoltage Protection: 115-135 %.

Features

PAF500F48-12 features: (1)Wide adjustment range; (2)Parallel Pin; (3)ASIC Design; (4)No potting materials.

Diagrams

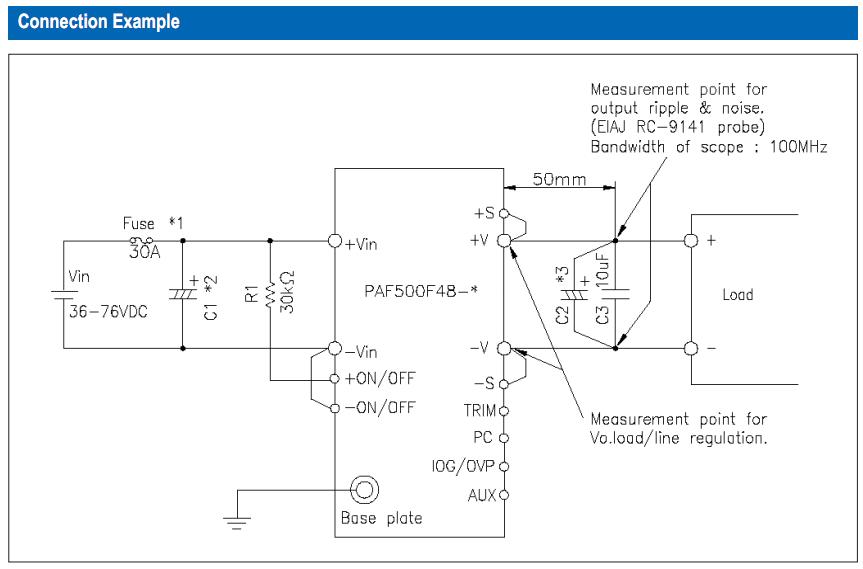

PAF500F48-12 connection example

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

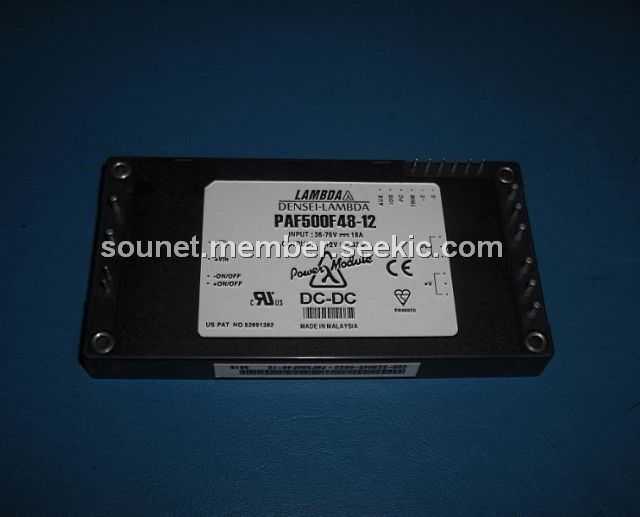

PAF500F48-12
PAF500F48-12

TDK-Lambda

DC/DC Converters 504W 12V 42A

Data Sheet

0-1: $145.20
1-10: $138.00
PAF500F48-12/T
PAF500F48-12/T

TDK-Lambda

DC/DC Converters 504W 12V 42A

Data Sheet

0-1: $145.20
1-10: $138.00
