Product Summary
TheLM709H is a monolithic operational amplifier intended for general-purpose applications. Operation is completely specified over the range of voltages commonly used for the device. The design, in addition to providing high gain, minimizes both offset voltage and bias currents. Further, the class-B output stage gives a large output capability with minimum power drain. External components are used to frequency compensate the amplifier. Although the unity-gain compensation network specified will make the amplifier unconditionally stable in all feedback configurations, compensation can be tailored to optimize high-frequency performance for any gain setting.
Parametrics
Absolute maximum ratings: (1)Supply Voltage : ±18V; (2)Power Dissipation (Note 1) : 300 mW; (3)Differential Input Voltage: ±5V; (4)Input Voltage: ±10V; (5)Output Short-Circuit Duration (TA = +25℃): 5 seconds; (6)Storage Temperature Range: -65℃ to +150℃; (7)Lead Temperature (Soldering, 10 sec.): 300℃; (8)Junction Temperature Range (Note 1): -55℃ to +150℃; (9)Thermal Resistance (iJA): H Package: 150℃/W, (θJC) 45℃/W; 8-Pin N Package: 134℃/W; 14-Pin N Package: 109℃/W.
Features
Features: (1)high gain; (2)minimizes both offset voltage and bias currents; (3)the class-B output stage gives a large output capability with minimum power drain; (4)for general-purpose applications.

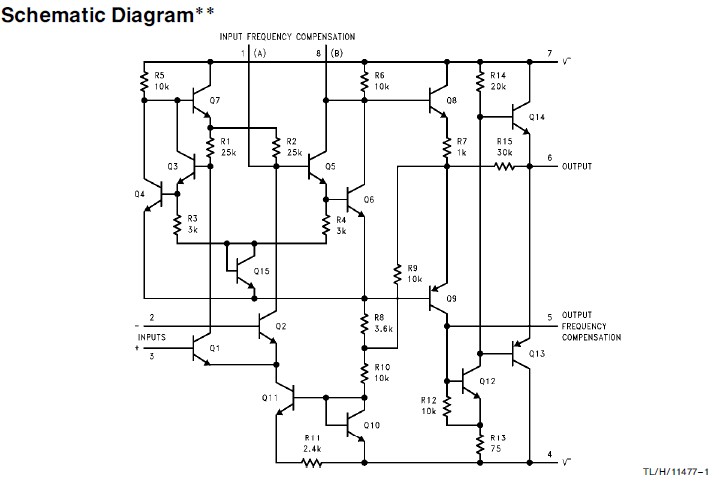

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

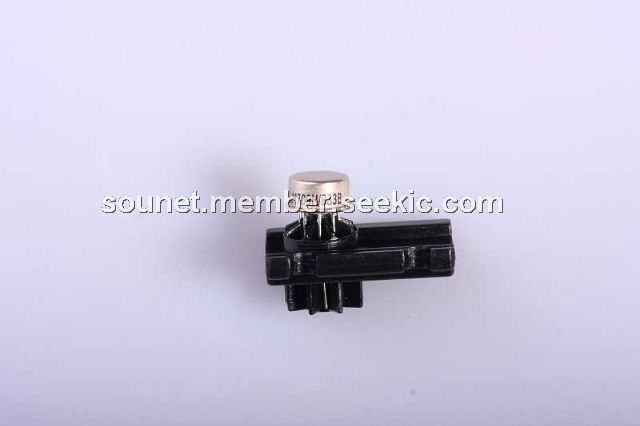

 LM709H |
|
IC OP AMP GENERAL PURPSE TO-99-8 |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
LM70 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LM7001 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LM7001J |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LM709 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LM709CH |
|
IC OP AMP GENERAL PURPSE TO-99-8 |
Data Sheet |
Negotiable |
|
||||
|
LM709H |
|
IC OP AMP GENERAL PURPSE TO-99-8 |
Data Sheet |
Negotiable |
|
||||
