Product Summary

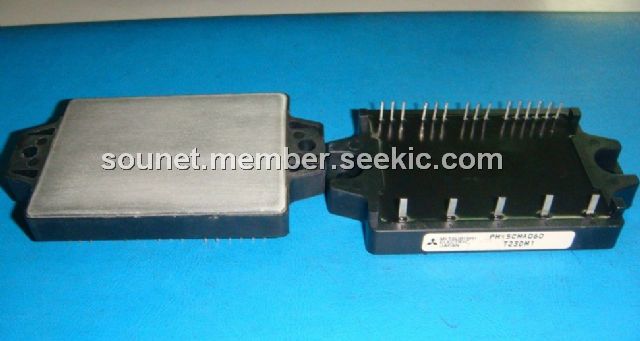

The PM15CMA060 is a 3 phase intelligent IGBT bridge with gate drive and protection circuit. It contains IR ultrafast series IGBTs and HEXFRED ultrafast, soft recovery diodes, rendering it suitable for 5 to 25 KHz switching frequencies. Built=in driver and protection circuit makes the PM15CMA060 the ideal building block for AC motor speed controllers, brushless servo drives, UPS and other inverter systems.
Parametrics
PM15CMA060 absolute maximum ratings: (1)IC@TC=25℃, continuous collector current, each IGBT, one IGBT incondition: 15A; (2)IC@TC=85℃, continuous collector current, each IGBT, one IGBT incondition: 7.0A; (3)VCE continuous collector-to-emitter voltage: 600V; (4)VCC supply voltage between P-N: 450V; (5)PD@TC=85℃ power dissipation, one IGBT in conduction: 22W; (6)TJ operating junction temperature range: -20 to 150℃.
Features
PM15CMA060 features: (1)3 phase IGBT bridge with drive and protection circuit; (2)2KW output power at 300VDC, 8KHz, TC=85℃; (3)Ultrafast IGBT and HEXFRED ultrafast, soft recovery diodes; (4)Over current short circuit, earth fault, under voltage and over temperature protection; (5)Fault feedback; (6)Carrier frequencies up to 25KHz.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() PM15CMA060 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||
