Product Summary
The 87421-0000 is a 1.50mm Pitch Pico-SPOX.
Parametrics
87421-0000 absolute maximum ratings: (1)Current: 3.0A max; (2)Voltage: 50V; (3)Contact Resistance: 40 milliohms max.; (4)Dielectric Withstanding Voltage: 500V AC per 1 minute; (5)Insulation Resistance: 1000 Megohms min.
Features
87421-0000 features: (1)Dual-point contact design for greater reliability; (2)Anti-fishhooking contact design to improve handling during harness assembly; (3)Locking tang on contact for secure retention to the housing; (4)Friction lock between receptacle housing and headers insures secure retention when mounted; (5)Lead-in chamfer on receptacle to ease mating; (6)Embossed tape packaging standard with headers for high volume applications; (7)Headers fully shrouded to protect pins; (8)Polarized mating geometry insures header and receptacle cannot be mis-mated; (9)Lead-free plating.

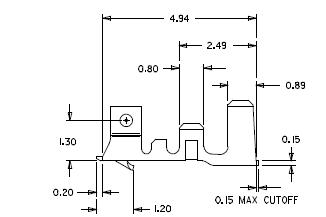

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

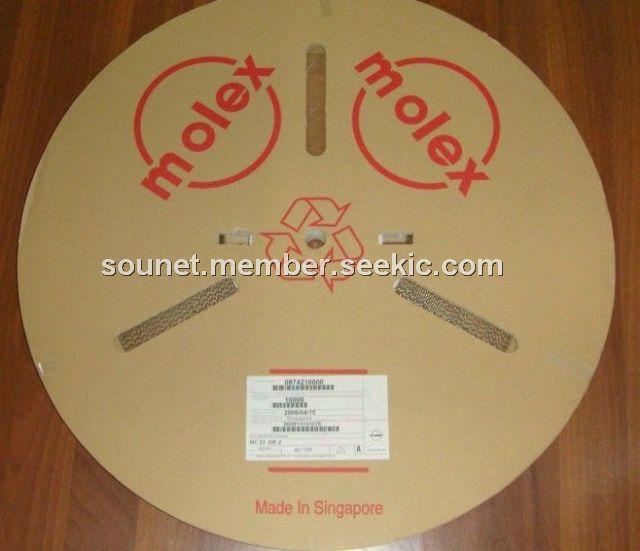

 87421-0000 |
Molex |
Headers & Wire Housings CRIMP TERMINAL 24-30 AWG Ph. Brz |
Data Sheet |
|
|
||||||||||||
|
87421-0000-C |
Molex |
Headers & Wire Housings 24-30AWG PH BRZ TERM BULK LOOSE PC |
Data Sheet |
|
|
||||||||||||
