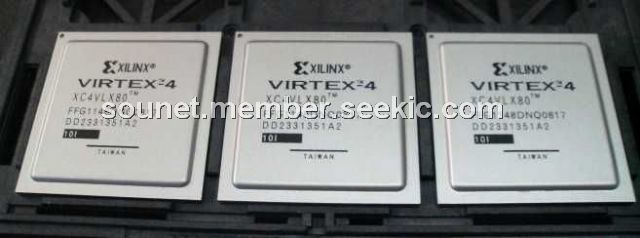

XC4VLX80-10FFG1148I

Product Summary

The XC4VLX80-10FFG1148I is the newest generation FPGA from Xilinx. The innovative Advanced Silicon Modular Block or ASMB column-based architecture is unique in the programmable logic industry. Virtex-4 FPGAs contain three families (platforms): LX, FX, and SX. Choice and feature combinations are offered for all complex applications. A wide array of hard-IP core blocks complete the system solution. These cores include the PowerPC processors (with a new APU interface), Tri-Mode Ethernet MACs, 622 Mb/s to 10+ Gb/s serial transceivers, dedicated DSP slices, high-speed clockmanagement circuitry, and source-synchronous interface blocks. The basic Virtex-4 building blocks are an enhancement of those found in the popular Virtex-based product families: Virtex, Virtex-E, Virtex-II, Virtex-II Pro, and Virtex-II Pro X, allowing upward compatibility of existing designs. Virtex-4 devices are produced on a state-of-the-art 90-nm copper process, using 300 mm (12 inch) wafer technology. Combining a wide variety of flexible features, the Virtex-4 family enhances programmable logic design capabilities and is a powerful alternative to ASIC technology.

Parametrics

Specifications(1)Digital Clock Manager (DCM) blocks; (2)Additional Phase-Matched Clock Dividers (PMCD); (3)Differential Global Clocks; (4)18x18, two’s complement, signed Multiplier; (5)Optional pipeline stages; (6)Built-In Accumulator (48-bits) & Adder/Subtracter; (7)Distributed RAM; (8)Dual-Port 18-Kbit RAM blocks; (9)1.5 to 3.3 V I/O Operation; (10)Built-In ChipSync Source-Synchronous Technology; (11)Digitally-controlled impedance (DCI) active termination; (12)Fine grained I/O banking (Configuration in one bank); (13)High-speed memory interface support: DDR and DDR-2 SDRAM, QDR-II, RLDRAM-II, and FCRAM-II; (14)PowerPC 405 (PPC405) Core; (15)Auxiliary Processor Unit Interface (User Coprocessor); (16)Optional pipeline stages; (17)Optional programmable FIFO logic - Automatically remaps RAM signals as FIFO signals.

Features

Features: (1)Virtex-4 LX: High-performance logic applications solution; (2)Xesium Clock Technology; (3)XtremeDSP Slice; (4)Smart RAM Memory Hierarchy; (5)SelectIO Technology; (6)Flexible Logic Resources; (7)Secure Chip AES Bitstream Encryption; (8)90-nm copper CMOS process; (9)1.2V core voltage; (10)Flip-Chip Packaging including Pb-Free package choices.; (11)RocketIO 622 Mb/s to 10+ Gb/s Multi-Gigabit Transceivers (MGT) (FX only); (12)IBM PowerPC RISC Processor Core (FX only); (13)Multiple Tri-Mode Ethernet MACs (FX only).

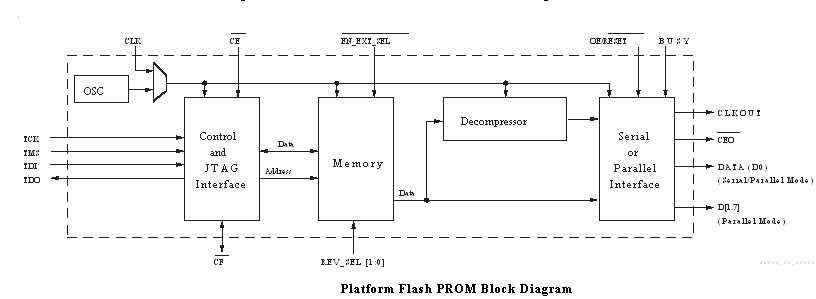

Diagrams
