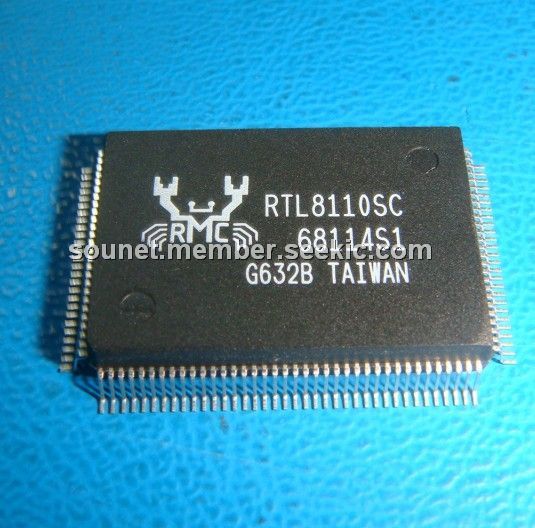

RTL8110SC

Product Summary

The Realtek RTL8110SC LOM Gigabit Ethernet controller combines a triple-speed IEEE 802.3 compliant Media Access Controller (MAC) with a triple-speed Ethernet transceiver, 32-bit PCI bus controller, and embedded memory. With state-of-the-art DSP technology and mixed-mode signal technology, it offers high-speed transmission over CAT 5 UTP or CAT 3 UTP (10Mbps only) cable. Functions such as Crossover Detection & Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds. The RTL8110SC supports the PCI v2.2 and MiniPCI v1.0 bus interfaces for host communications with power management, and is compliant with the IEEE 802.3 specification for 10/100Mbps Ethernet and the IEEE 802.3ab specification for 1000Mbps Ethernet. The RTL8110SC also supports an auxiliary power auto-detect function, and will auto-configure related bits of the PCI power management registers in PCI configuration space.

Parametrics

RTL8110SC absolute maximum ratings: (1)Supply Voltage: -0.5 to 4 V; (2)Input Voltage (DCinput): -0.5 to VDD33 + 0.5 V; (3)Output Voltage (DCoutput): -0.5 to VDD33 + 0.5 V; (4)Storage Temperature: -55 to +125 ℃.

Features

RTL8110SC features: (1)Integrated 10/100/1000 transceiver; (2)Auto-Negotiation with Next Page capability; (3)Supports PCI rev.2.3, 32-bit, 33/66MHz; (4)Supports CLKRUNB and MiniPCI v1.0; (5)Supports pair swap/polarity/skew correction; (6)Crossover Detection & Auto-Correction; (7)Wake-on-LAN and remote wake-up support; (8)Microsoft?NDIS5 Checksum Offload (IP, TCP, UDP) and largesend offload support; (9)Supports Full Duplex flow control (IEEE 802.3x); (10)Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab; (11)Supports IEEE 802.1P Layer 2 Priority Encoding; (12)Supports IEEE 802.1Q VLAN tagging; (13)Serial EEPROM; (14)3.3V signaling, 5V PCI I/O tolerant; (15)Transmit/Receive FIFO support; (16)Supports power down/link down power saving; (17)Supports PCI Message Signaled Interrupt (MSI); (18)Various 128-pin package types available.

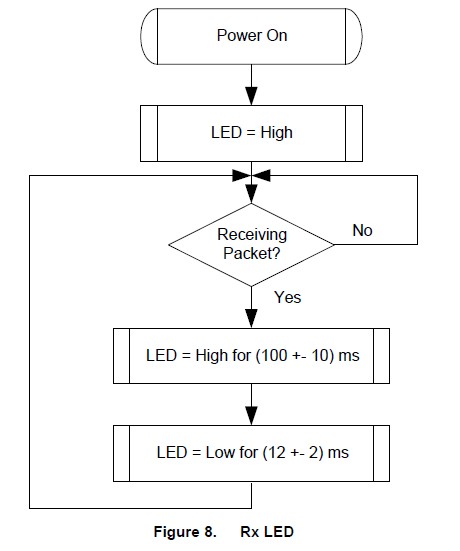

Diagrams
