Product Summary

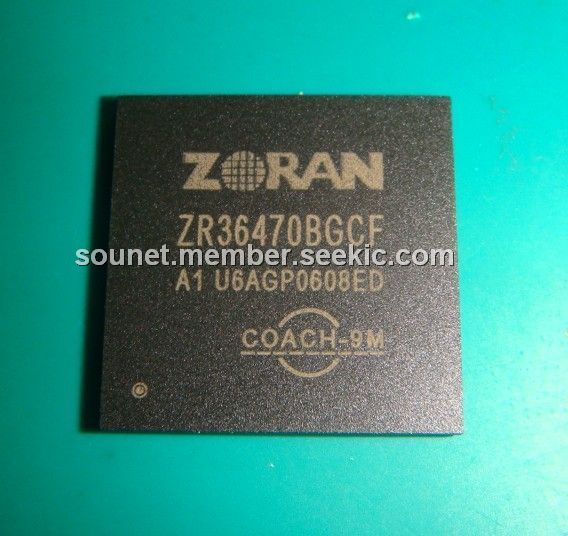

The ZR36470BGCF is an application specific digital signal processing IC, which constitutes the heart of a digital camera for capturing still images and video. The ZR36470BGCF provides a complete, integrated, low power and low cost solution for digital camera manufacturers. Coach 9 innovative features and integrations offer competitive performance and picture quality for digital cameras. The ZR36470BGCF enables platforms from entry-level to high end cameras including high quality digital video camcorders.
Features
ZR36470BGCF features: (1)Up to 16M Pixels image capture resolution; (2)Click to click performance of 3 frames/sec at 7MP resolution; (3)16-bit image processing for highest quality, includes multiple Zoran proprietary (patent pending) technologies; (4)Image enhancement and manipulation effects for better viewing and printing quality; (5)Capable of WMV MPEG-4, video capture and playback of VGA resolution at 30 frames/sec including audio and 20 frames/sec at SVGA resolution; (6)File formats including ASF, DivX, AVI and MOV can be supported; (7)MPEG-4 encoding uses I, P and B frames for true video quality; (8)Digital Video Motion Stabilization technology (patent pending) to compensate for unwanted camera movement during video capture; (9)Capable of several Audio codecs including: WMA; Dolby Digital AAC; ADPCM; MPEG1; (10)On-chip HDMI transmitter for native HD display support; (11)Rich color on-screen display (OSD) with transparency levels; (12)Picture-in-Picture with blending support in hardware.

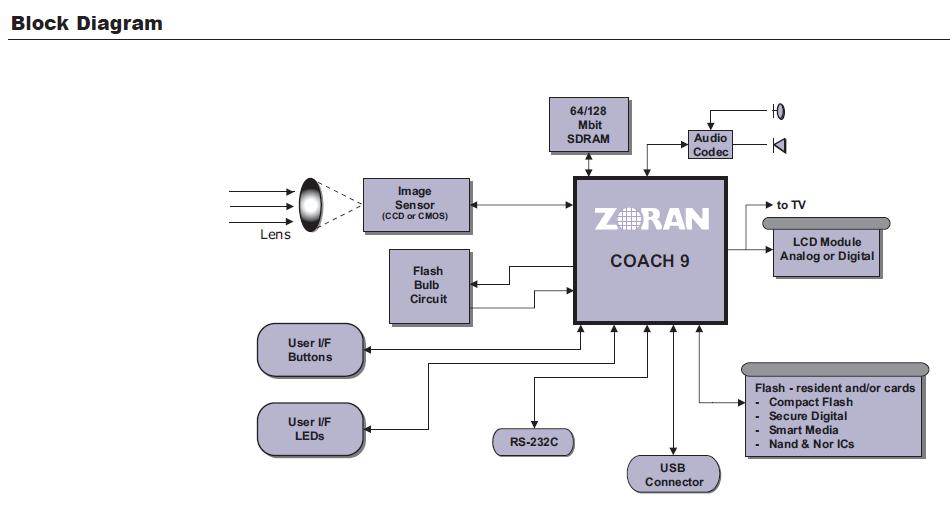

Diagrams
 |
