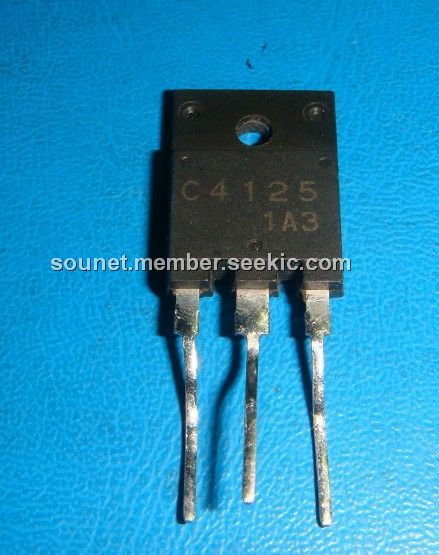

The 2SC4125 is a NPN triple diffused planar silicon transistor. The device is suitable for very high-definition color display, horizontal deflection output applications.
Parametrics
2SC4125 absolute maximum ratings: (1)collector-to-base voltage, VCBO: 1500V; (2)collector-to emitter voltage, VCEO: 800V; (3)emitter-to-base voltage, VEBO: 6V; (4)collector current, IC: 10A; (5)peak collector current, Icp: 25A; (6)collector dissipation, PC: 3W; 70W when Tc=75℃; (7)junction temperature, Tj: 150℃; (8)storage temperature, Tstg: -55 to 150℃.
Features
2SC4125 features: (1)adoption of MBIT process; (2)on-chip damper diode; (3)high breakdown voltage 9VCBO=1500V); (4)high speed (tf=100ns typ); (5)high reliability (adoption of HVP process).

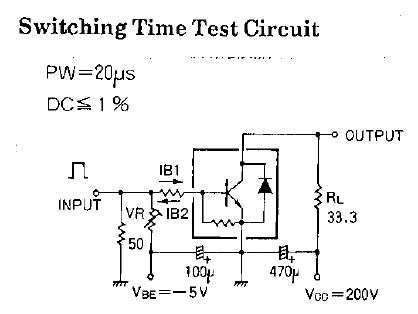

Diagrams
