Product Summary

Powerex IGBTMOD Modules are designed for use in switching applications. Each module consists of two IGBT Transistors in a halfbridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.

Parametrics

Absolute maximum ratings:(1)Junction Temperature, Tj: –40 to 150°C; (2)Storage Temperature, Tstg: –40 to 125°C; (3)Collector-Emitter Voltage (G-E Short), VCES: 600Volts; (4)Gate-Emitter Voltage (C-E Short), VGES: ±20Volts; (5)Collector Current(DC, TC = 89°C), IC: 300Amperes; (6)Peak Collector Current, ICM: 600Amperes; (7)Emitter Current (TC = 25°C), IE: 300Amperes; (8)Peak Emitter Current, IEM: 600 Amperes; (9)Maximum Collector Dissipation (TC = 25°C, Tj ≤ 150°C), PC: 780Watts; (10)Mounting Torque M5, Main Terminal: 30 in-lb; (11)Mounting Torque M6, Mounting: 40 in-lb; (12)Weight: 310 Grams; (13)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), VISO: 2500Volts.

Features

Features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)Isolated Baseplate for Easy Heat Sinking.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

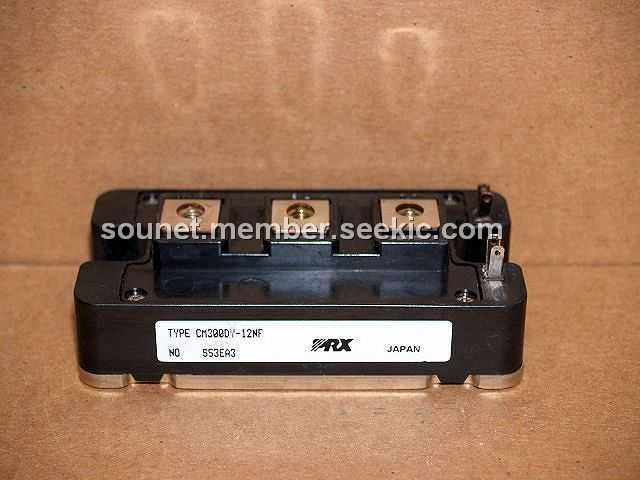

CM300DY-12NF
CM300DY-12NF


IGBT MOD DUAL 600V 300A NF SER

Data Sheet

0-1: $90.00
1-10: $84.12
10-100: $78.24
100-250: $75.88
250-500: $74.12
500-1000: $70.59
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CM3002
CM3002

Other


Data Sheet

Negotiable
CM300DU-12F
CM300DU-12F


IGBT MOD DUAL 600V 300A F SER

Data Sheet

0-1: $92.71
CM300DU-12H
CM300DU-12H


IGBT MOD DUAL 600V 300A U SER

Data Sheet

0-1: $100.34
CM300DU-12NFH
CM300DU-12NFH


IGBT MOD DUAL 600V 300A NFH SER

Data Sheet

0-1: $93.82
CM300DU-24F
CM300DU-24F


IGBT MOD DUAL 1200V 300A F SER

Data Sheet

0-1: $164.01
CM300DU-24H
CM300DU-24H


IGBT MOD DUAL 1200V 300A U SER

Data Sheet

0-1: $177.50
