Product Summary

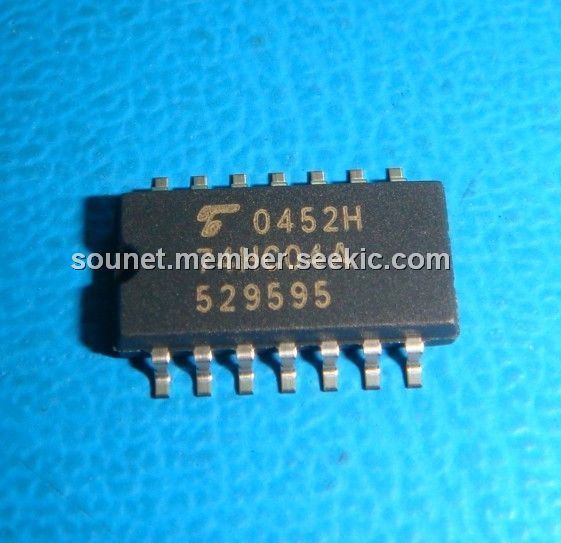

The 74HC04A is identical in pinout to the LS04 and the MC14069. The 74HC04A inputs are compatible with Standard CMOS outputs; with pullup resistors, 74HC04A is compatible with LSTTL outputs. The device consists of six three-stage inverters.
Parametrics
74HC04A maximum ratings: (1)DC supply voltage: -0.5 to +7.0V; (2)DC input voltage: -0.5 to + VCC+ 0.5V; (3)DC output voltage: -0.5 to + VCC+ 0.5V; (4)DC input current, per pin: ±20mA; (5)DC output current, per pin: ±25mA; (6)DC supply current, VCC and GND pins: ±50mA; (7)Power dissipation in Still Air, plastic DIP+, 750 mW; SOIC, 500 mW; TSSOP, 450 mW; (8)Storage Temperature: -65 to +150℃.
Features
74HC04A features: (1)Output Drive Capability: 10 LSTTL Loads; (2)Outputs Directly Interface to CMOS, NMOS and TTL; (3)Operating Voltage Range: 2.0 to 6.0 V; (4)Low Input Current: 1 μA; (5)High Noise Immunity Characteristic of CMOS Devices; (6)In Compliance With the JEDEC Standard No. 7A Requirements; (7)Chip Complexity: 36 FETs or 9 Equivalent Gates; (8)Pb-Free Packages are Available.

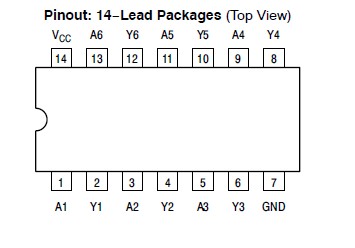

Diagrams
 |
