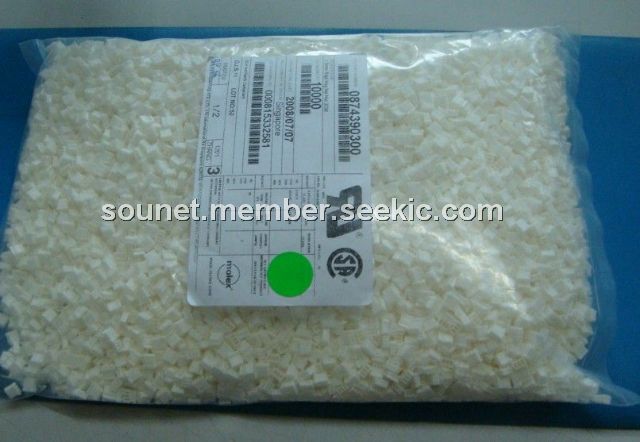

87439-0300

ultra low-profile connector system, SMD, 3Amps, 250Volts, Box-style, wire-to-board

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.02~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.02~2.00

PartNumber:: 87439-0300

Brand:: Molex - Molex | Pack: SMD | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Kelly Huang's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-11

From Other Seller

Part Number:87439-0300
US $0.02 - 2.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

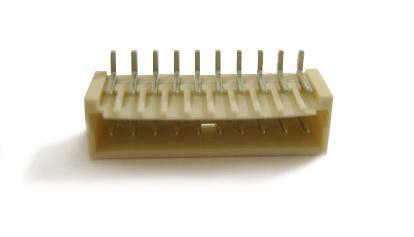

The 87439-0300 is an ultra low-profile connector system designed for tight packaging applications. The device provides dual positive locks and a superior audible click to help ensure connectors are fully mated. The device provides space savings and easy mating/ unmating, plus, includes a unique inner positive lock that provides latch protection, secure retention and an audible mating click. The 87439-0300 provides Anti-fishhooking box design protects contact area. The applications of the 87439-0300 include Appliances White Goods, Automotive, Home Applications LCD/PDP TVs Consumer, Computer Data Communication equipment Vending and Gaming, Industrial and Business Equipment Office machines Medical and Any application requiring superior mating assurance.

Parametrics

87439-0300 absolute maximum ratings: (1)design configuration: wire-to-board and wire-to-wire; (2)pitch: 1.25mm, 1.50mm and 2.00mm; (3)connector type: receptacles, plus and headers; (4)mounting orientation: vertical and right angle; (5)circuit sizes: 2, 4, 6, 8, 9, 12 and 14; (6)current rating: 1 Amp, 2 Amps and 3Amps; (7)voltage: 30, 50, 125, 250Volts; (8)wire size: (32-30), (30-28) and (26-22) AWG.

Features

87439-0300 features: (1)Tuning fork style contact design Secure contact, and avoids terminal stubbing; (2)Flat area for pick-and-place Easy automatic board placement; (3)Audible click, low insertion force and secure mating / Inner positive lock Latch protection, secure mating, audible click; (4)Box-style contact Protects contact area /Two-point contact design Secure electrical contact, High current capable; (5)Polarizing features Ensures proper mating /Reinforced metal solder tabs Secure PCB.
