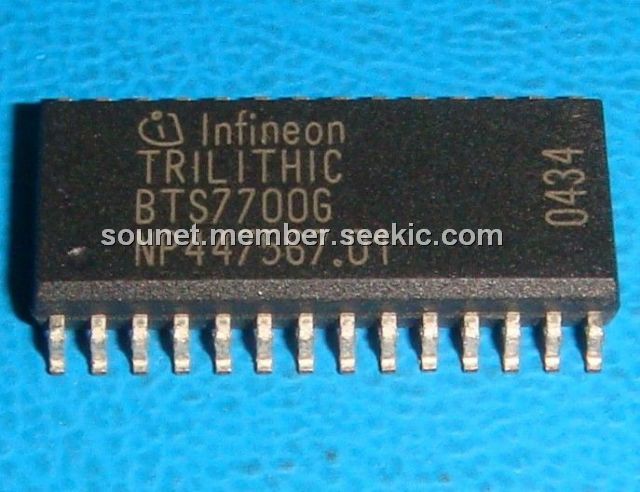

BTS7700G

TrilithIC, SOP, –0.3 to 42 V, Low RDS ON, PWM frequencies up to 50 kHz, Very low quiescent current

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.80~2.00

PartNumber:: BTS7700G

Brand:: Infineon Technologies AG - Infineon | Pack: SOP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Kelly Huang's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-04

From Other Seller

Part Number:BTS7700G
US $0.80 - 2.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

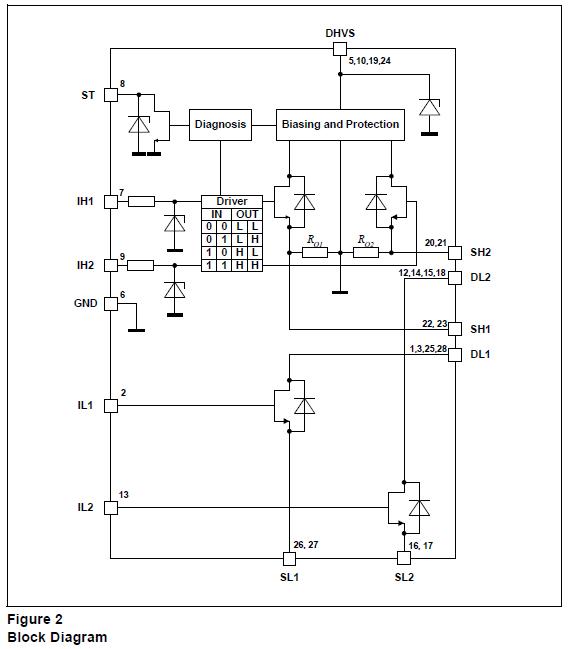

The BTS7700G is a TrilithIC. The device contains three dies in one package: One double high-side switch and two low-side switches. The drains of these three vertical DMOS chips are mounted on separated leadframes. The sources are connected to individual pins, so the BTS7700G can be used in H-bridge- as well as in any other configuration. The double high-side is manufactured in SMART SIPMOS technology which combines low RDS ON vertical DMOS power stages with CMOS control circuitry. The high-side switch BTS7700G is fully protected and contains the control and diagnosis circuitry. To achieve low RDS ON and fast switching performance, the low-side switches are manufactured in S-FET logic level technology. The equivalent standard product is the BUZ 104 SL.

Parametrics

BTS7700G absolute maximum ratings: (1)Supply voltage, VS: –0.3 to 42 V; (2)Supply voltage for full short circuit protection, VS(SCP): 28 V; (3)HS-drain current, IS:–7A when TA = 25℃; t < 100 ms; (4)HS-input current, IIH: –5 to 5 mA Pin at IH1 and IH2; (5)HS-input voltage, VIH: –10 to 16 V at Pin IH1 and IH2.

Features

BTS7700G features: (1)Quad D-MOS switch driver; (2)Free configurable as bridge or quad-switch; (3)Optimized for DC motor management applications; (4)Low RDS ON: 110 mΩ high-side switch, 90 mΩ lowside switch (typical values @ 25℃); (5)Maximum peak current: typ. 9 A @ 25℃; (6)Very low quiescent current: typ. 5 <A @ 25℃; (7)Small outline, enhanced power P-DSO-package; (8)Load and GND-short-circuit-protection; (9)Operates up to 40 V; (10)Status flag diagnosis; (11)Overtemperature shut down with hysteresis; (12)Internal clamp diodes; (13)Isolated sources for external current sensing; (14)Under-voltage detection with hysteresis; (15)PWM frequencies up to 50 kHz.
