Product Summary

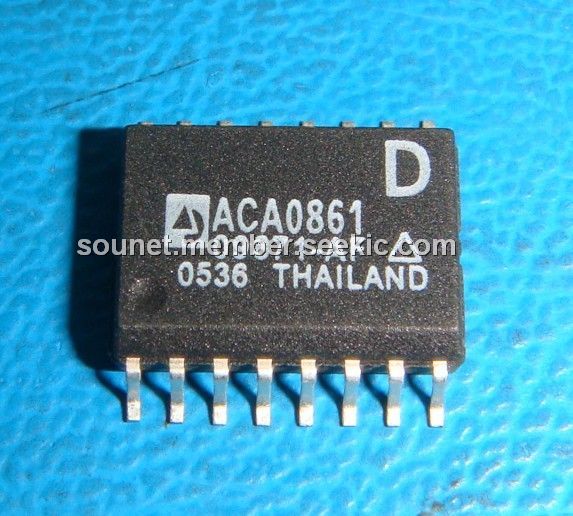

The ACA0861D is a surface mount monolithic GaAs RF Linear Amplifier. It has been developed to replace, in new designs, the standard CATV Hybrid amplifiers currently in use. The ACA0861D consists of two parallel amplifiers, each with 12 dB gain. The device is optimized for exceptionally low distortion and noise figure while providing flat gain and excellent input and output return loss. There are four differently specified Amplifiers available, two input stages and two output stages. The ACA0861D is input stage and is specified at +34 dBmV flat output. A Hybrid equivalent is formed when one input stage is cascaded with an output stage between two transmission line baluns. For low gain applications a single ACA0861D can be used between baluns.
Parametrics
ACA0861D absolute maximum ratings: (1)VDD/VRFOUT: 0 to 15 VDC; (2)RFIN: +70 dBmV max; (3)Storage Temperature: -65 to +150℃; (4)Soldering Temperature: +260℃ max; (5)Soldering Time: 5.0 Sec. max; (6)Thermal Resistance: 6.0℃/W max; (7)Operating Temperature: -40 to 110℃.
Features
ACA0861D features: (1)Flat Gain; (2)Very Low Distortion; (3)Excellent Input/Output Match; (4)Low DC Power Consumption; (5)Good RF Stability with high VSWR Load Conditions; (6)Surface Mount Package; (7)Package Fully Automatic Assembly Compatible; (8)Low Cost; (9)Repeatability of Monolithic Fabrication; (10)Meets Cenelel Standard.

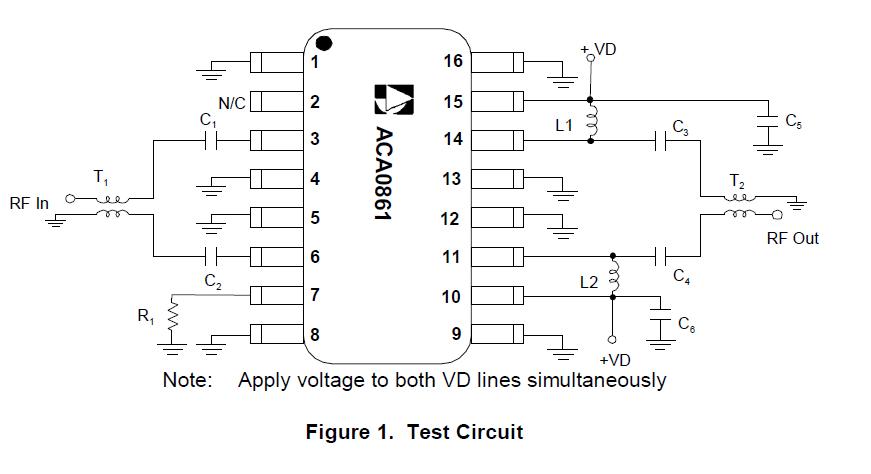

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ACA0861D |
Other |
|
Data Sheet |
Negotiable |
|
||||||
