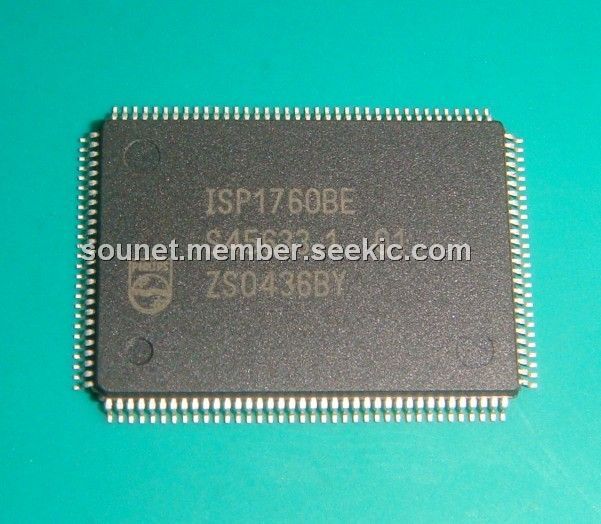

Product Summary

The ISP1760BE is a Hi-Speed Universal Serial Bus (USB) Host Controller with a generic processor interface. The ISP1760BE integrates one Enhanced Host Controller Interface (EHCI), one Transaction Translator (TT) and three transceivers. The Host Controller portion of the ISP1760BE and the three transceivers comply to Universal Serial Bus Specification Rev. 2.0. The EHCI portion of the ISP1760BE is adapted from Enhanced Host Controller Interface Specification for Universal Serial Bus Rev. 1.0.

Parametrics

ISP1760BE absolute maximum ratings: (1)VCC(I/O), supply voltage: -0.5 to +3.6 V; (2)VCC(5V0), supply voltage: -0.5 to +5.5 V; (3)Ilu, latch-up current VI < 0 or VI > VCC: 100 mA; (4)Vesd, electrostatic discharge voltage ILI < 1 mA: -4000 to +4000 V; (5)Tstg, storage temperature: -40 to +125℃.

Features

ISP1760BE features: (1)The Host Controller portion of the ISP1760 complies with Universal Serial Bus Specification Rev. 2.0; (2)The EHCI portion of the ISP1760 is adapted from Enhanced Host Controller Interface Specification for Universal Serial Bus Rev. 1.0; (3)Contains three integrated Hi-Speed transceivers that support the high-speed, full-speed and low-speed modes; (4)Integrates a TT for Original USB (full-speed and low-speed) device support; (5)Up to 64-kbyte internal memory (8 k x 64 bits) accessible through a generic processor interface; operation in multitasking environments is made possible by the implementation of virtual segmentation mechanism with bank switching on task request.

Diagrams

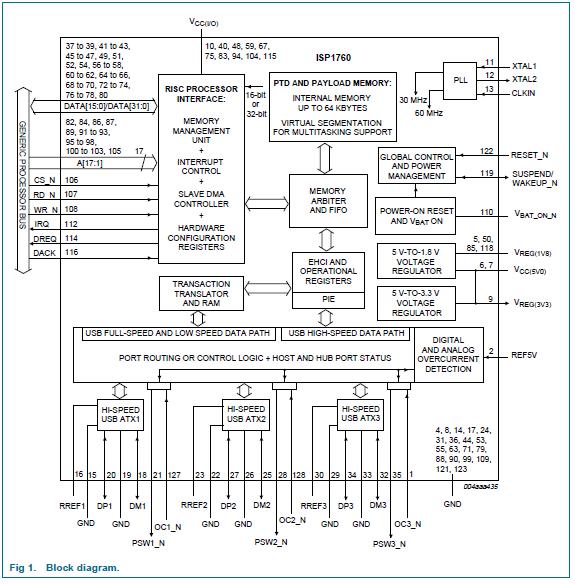

ISP1760BE block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ISP1760BE,518
ISP1760BE,518

NXP Semiconductors

I/O Controller Interface IC USB HOST CONTROLLER

Data Sheet

Negotiable
ISP1760BE,551
ISP1760BE,551

NXP Semiconductors

I/O Controller Interface IC USB HS HOST CONTRLLR

Data Sheet

Negotiable
ISP1760BE-S
ISP1760BE-S

NXP Semiconductors

I/O Controller Interface IC USB HS HOST CONTRLLR

Data Sheet

Negotiable
ISP1760BEGA
ISP1760BEGA


IC USB CTRL HI-SPEED 128LQFP

Data Sheet

Negotiable
ISP1760BEGE
ISP1760BEGE


IC USB CTRL HI-SPEED 128LQFP

Data Sheet

Negotiable
ISP1760BEUM
ISP1760BEUM


IC USB HOST CONTROLLER 128-LQFP

Data Sheet

Negotiable
