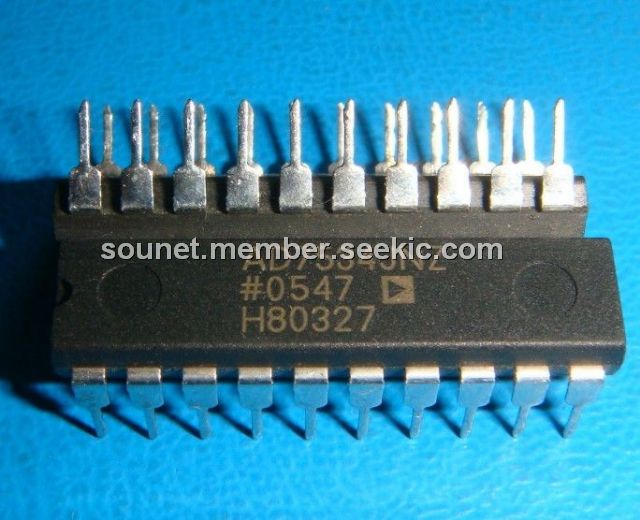

Product Summary

The AD7534JNZ is a 14-bit monolithic CMOS D/A converter which uses thin-film resistors and laser trimming to achieve excellent lincarity. The AD7534JNZ is configured to accept right-justified data in two bytes from an 8-bit data bus. Standard Chip Select and Memory Write logic is used to access the DAC. Address lines A0 and Al control internal resister loading and transfer. The applications of the AD7534JNZ include: (1)Microprocessor based control systems; (2)Digital audio reconstruction; (3)High precision servo control; (4)Control and measurement in high temperature environments.

Parametrics

AD7534JNZ absolute maxing ratings: (1)VDD(pin 19) to DGND: -0.3V to +17V; (2)VSS(pin 20) to AGND: -15V to +0.3V; (3)VREF(pin 1) to AGND: ±25V; (4)VRFB(pin 2) to AGND: ±25V; (5)Digital input voltage(pins 7-18) to DGND: -0.3V to VDD; (6)VPIN3 to DGND: -0.3V to VDD; (7)AGND to DGND: -0.3V to VDD; (8)Power dissipation(any package) to +75℃: 450mW; (9)Derates above +75℃: 6mW/℃; (10)Operating temperature range commercial(J, K versions): 0 to +70℃; Industrial(A, B versions): -25℃ to +85℃; Extened(S, T version): -55℃ to +125℃; (11)Storage temperature: -65℃ to +150℃; (12)Lead temperature(soldering, 10secs): 300℃.

Features

AD7534JNZ features: (1)All grades 14-bit monotonic over the full temperature range; (2)Full 4-ouadrant multiplication; (3)Microprocessor-compatible with double buffered inputs; (4)Exceptionally low gain temperature coefficient, 0.5ppm/℃ typ; (5)8mall 20-pin DIP and surface mount package; (6)Low output leakage(<20nA)over the full temperature range.

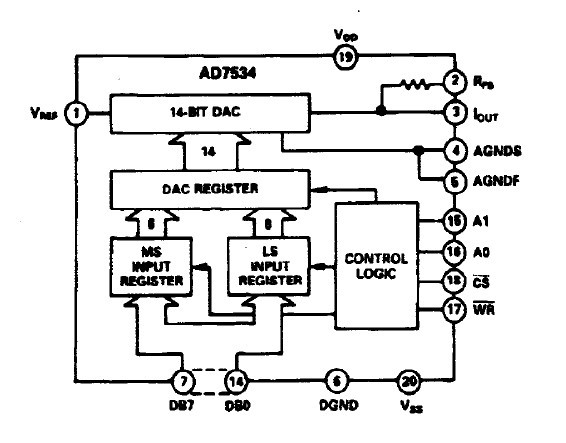

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD7534JNZ
AD7534JNZ

IC DAC 14BIT MULT W/BUFF 20-DIP
Data Sheet
0-1: $19.36
1-10: $17.90
10-100: $15.29
100-250: $14.03
250-500: $13.35
500-1000: $12.90
