Product Summary

The TPME477K010R0023 is tantalum ultra low ESR capacitor. This device adopts multi-anode construction. The CV range is 10-2200μF / 2.5-50V, and four case sizes are available. Except from the information stated above, this product also have characteristics as follow, such as Mirror multi-anode construction used with D case capacitors reduces ESL to half, as well as super low ESR.

Parametrics

Absolute maximum ratings:(1)Technical Data: All technical data relate to an ambient temperature of +25°C; (2)Capacitance Range: 10 μF to 2200 μF; (3)Capacitance Tolerance: ±10%, ±20%; (4)Rated Voltage (VR) +85°C: 2.5, 4, 6.3, 10, 16, 20, 25, 35, 50; (5)Category Voltage (VC) +125°C: 1.7, 2.7, 4, 7, 10, 13, 17, 23, 33; (6)Surge Voltage (VS) +85°C: 3.3, 5.2, 8, 13, 20, 26, 32, 46, 65; (7)Surge Voltage (VS) +125°C: 2.2, 3.4, 5, 8, 13, 16, 20, 28, 40; (8)Temperature Range: -55°C to +125°C; (9)Reliability: 1% per 1000 hours at 85°C, VR with 0.1Ω/V series impedance, 60% confidence level Meets requirements of AEC-Q200.

Features

Features: (1)Multi-anode construction; (2)Super low ESR; (3)CV range: 10-2200μF / 2.5-50V; (4)4 case sizes available; (5)Mirror multi-anode construction used with D case capacitors reduces ESL to half.

Diagrams

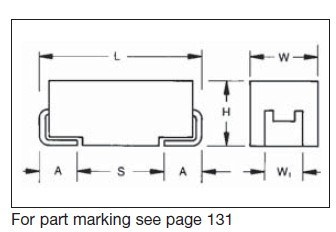

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

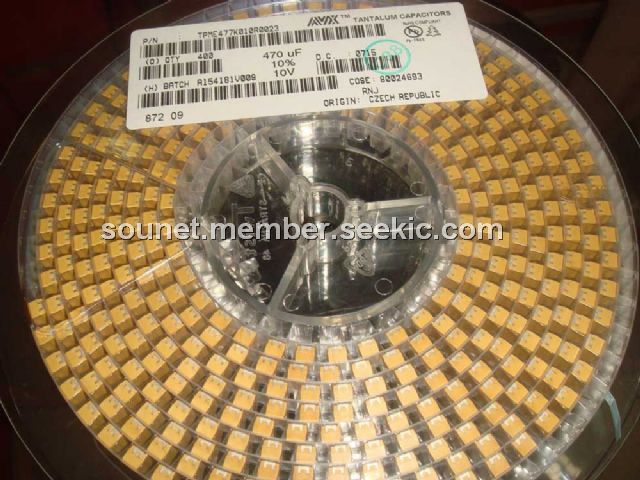

TPME477K010R0023
TPME477K010R0023
AVX
Tantalum Capacitors - Solid SMD 10volt 470uF 10% ESR=23Mohms
Data Sheet
0-1: $5.30
1-10: $4.96
10-50: $4.86
50-100: $4.27
100-400: $2.48
