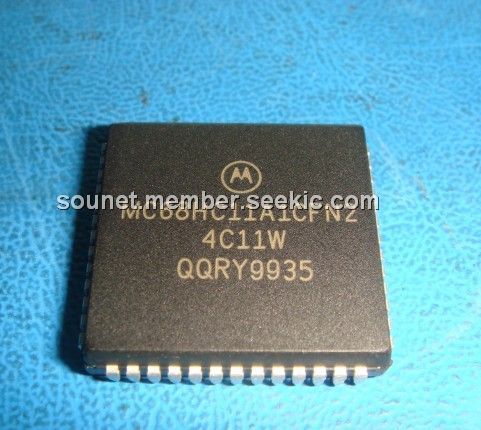

Product Summary
The HCMOS MC68HC11A1CFN2 is an advanced 8-bit microcontroller (MCU) with highly sophisticated on-chip peripheral capabilities. A fully static design and high-density complementary metal-oxide semiconductor (HCMOS) fabrication process allow E-series devices to operate at frequencies from 3 MHz to dc, with very low power consumption.
Parametrics
Absolute maximum ratings: (1)Supply Voltage, VDD: – 0.3 to + 7.0 V ; (2)Input Voltage, Vin: – 0.3 to + 7.0 V ; (3)Operating Temperature Range, TA: 0 to 70°C; (4)Storage Temperature Range, Tstg: – 55 to 150 °C ; (5)Current Drain per Pin Excluding VDD, VSS, VRH, and VRL, ID: 25 mA ; (6)Average Junction Temperature, TJ: TA + (PD x QJA) °C; (7)Ambient Temperature, TA: User-determined °C.
Features
Features: (1)8 Kbytes of ROM; (2)512 Bytes of EEPROM; (3)256 Bytes of RAM (All Saved During Standby) Relocatable to Any 4K Boundary; (4)Enhanced 16-Bit Timer System: Four Stage Programmable Prescaler; Three Input Capture Functions; Five Output Compare Functions; (5)8-Bit Pulse Accumulator Circuit; (6)Enhanced NRZ Serial Communications Interface (SCI); (7)Serial Peripheral Interface (SPI); (8)Eight Channel, 8-Bit Analog-to-Digital Converter; (9)Real Time Interrupt Circuit; (10)Computer Operating Properly (COP) Watchdog System; (11)Available in Dual-In-Line or Leaded Chip Carrier Packages; (12)Enhanced M6800/M6801 Instruction Set; (13)16 x 16 Integer and Fractional Divide Features; (14)Bit Manipulation; (15)WAIT Mode; (16)STOP Mode.

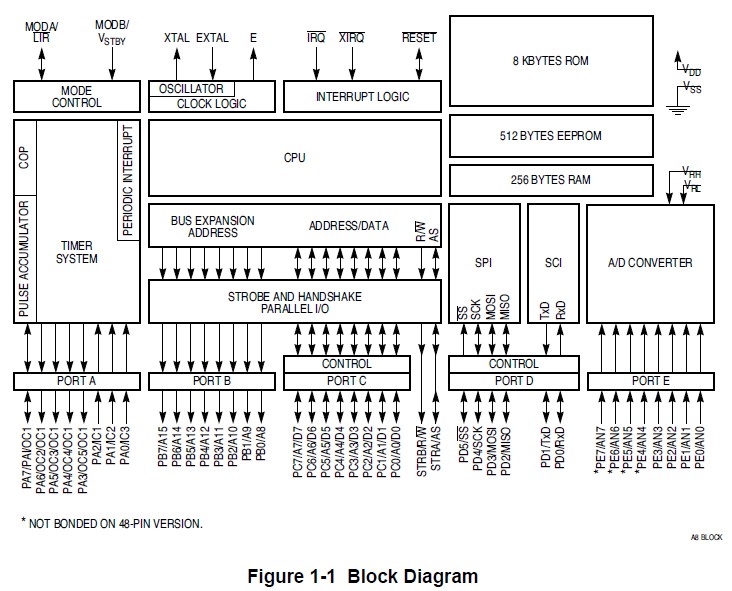

Diagrams
 |
