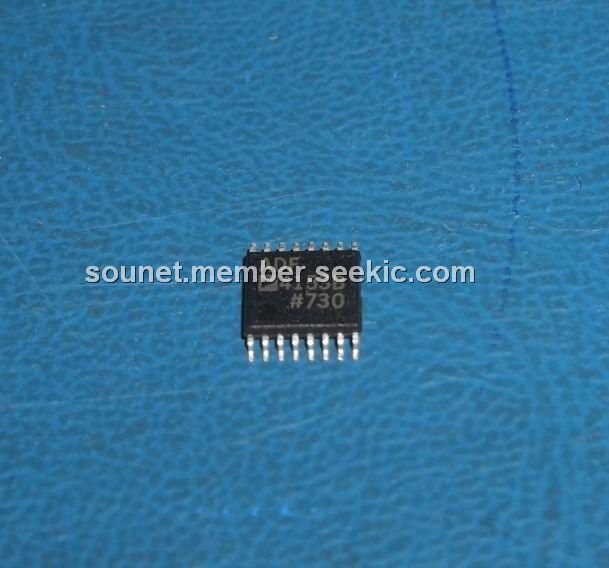

Product Summary
The ADF4153BRUZ is a fractional-N frequency synthesizer that implements local oscillators in the upconversion and downconversion sections of wireless receivers and transmitters. ADF4153BRUZ consists of a low noise digital phase frequency detector(PFD), a precision charge pump, and a programmable reference divider. The ADF4153BRUZ operates with a power supply ranging from 2.7 V to 3.3 V and can be powered down when not in use. The applications of ADF4153BRUZ include: (1)CATV equipment; (2)Base stations for mobile radio (GSM, PCS, DCS, CDMA, WCDMA); (3)Wireless handsets (GSM, PCS, DCS, CDMA, WCDMA); (4)Wireless LANs; (5)Communications test equipment.
Parametrics
ADF4153BRUZ absolute maximum ratings: (1)VDD to GND: 0.3 V to +4 V; (2)VDD to VDD: 0.3 V to +0.3 V; (3)VP to GND: 0.3 V to +5.8 V; (4)VP to VDD: 0.3 V to +5.8 V; (5)Digital I/O Voltage to GND: 0.3 V to VDD + 0.3 V; (6)Analog I/O Voltage to GND: 0.3 V to VDD + 0.3 V; (7)REFIN, RFIN to GND: 0.3 V to VDD + 0.3 V; (8)Operating Temperature Range Industrial (B Version): 40℃ to +85℃; (9)Storage Temperature Range: 65℃ to +150℃; (10)Maximum Junction Temperature: 150℃; (11)TSSOP θ JA Thermal Impedance: 150.4℃/W; (12)LFCSP θ JA Thermal Impedance (Paddle Soldered): 122℃/W; (13)LFCSP θ JA Thermal Impedance (Paddle Not Soldered): 216℃/W; (14)Lead Temperature, Soldering Vapor Phase (60 sec): 215℃; (15)Infrared: 220℃.
Features
ADF4153BRUZ features: (1)RF bandwidth 500 MHz to 4 GHz; (2)2.7 V to 3.3 V power supply; (3)Separate VP allows extended tuning voltage; (4)Programmable dual-modulus prescaler 4/5, 8/9; (5)Programmable charge pump currents; (6)3-wire serial interface; (7)Analog and digital lock detect; (8)Power-down mode; (9)Pin compatible with the ADF4110/ ADF4111/ ADF4112/ ADF4113 and ADF4106; (10)Programmable modulus on fractional-N synthesizer; (11)Trade-off noise versus spurious performance.

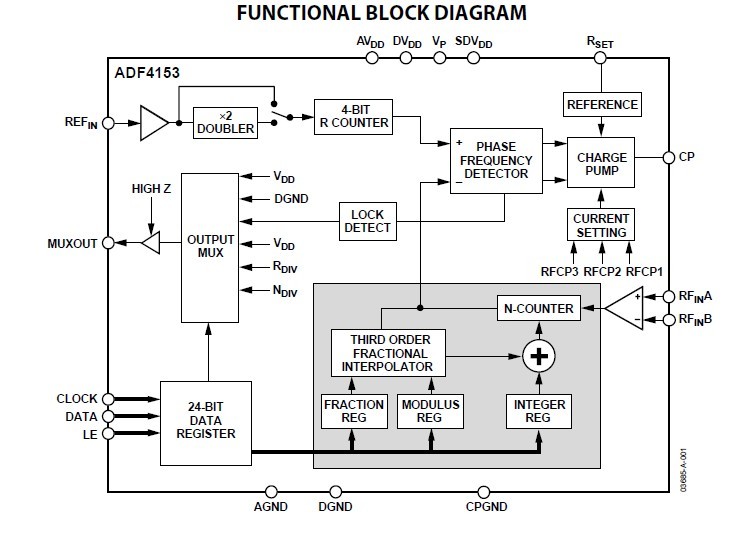

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADF4153BRUZ |
|
IC SYNTH PLL RF F-N FREQ 16TSSOP |
Data Sheet |
|
|
||||||||||||||||||
|
ADF4153BRUZ-RL |
|
IC FRACTION-N FREQ SYNTH 16TSSOP |
Data Sheet |
|
|
||||||||||||||||||
|
