Product Summary

The EP2C70F672C7N is one member of the EP2C70F family which is designed as the 1.2-V, 90-nm, all-layer copper SRAM that maximizes performance, and enables device densities approaching 180,000 equivalent logic elements (LEs). Various high-speed external memory interfaces are supported, including double data rate (DDR) SDRAM and DDR2 SDRAM, RLDRAM II, quad data rate (QDR) II SRAM, and single data rate (SDR) SDRAM.

Parametrics

Absolute maximum ratings: (1)Supply voltage: –0.5 to 1.8 V; (2)Analog power supply for PLLs: –0.5 to 1.8 V; (3)Digital power supply for PLLs: –0.5 to 1.8 V; (4)DC input voltage: –0.5 to 4.6 V; (5)DC output current, per pin: –25 to 40 mA; (6)Storage temperature: –65 to 150 °C; (7)Junction temperature:–55 to 125 °C.

Features

Features:(1)15,600 to 179,400 equivalent LEs;(2)New and innovative adaptive logic module (ALM), the basic building block of the Stratix II architecture, maximizes performance and resource usage efficiency;(3)Up to 9,383,040 RAM bits (1,172,880 bytes) available without reducing logic resources;(4)TriMatrix memory consisting of three RAM block sizes to implement true dual-port memory and first-in first-out (FIFO) buffers;(5)High-speed DSP blocks provide dedicated implementation of multipliers (at up to 450 MHz), multiply-accumulate functions, and finite impulse response (FIR) filters;(6)Up to 16 global clocks with 24 clocking resources per device region;(7)Clock control blocks support dynamic clock network enable/disable, which allows clock networks to power down to reduce power consumption in user mode;(8)High-speed differential I/O support with DPA circuitry for 1-Gbps performance.

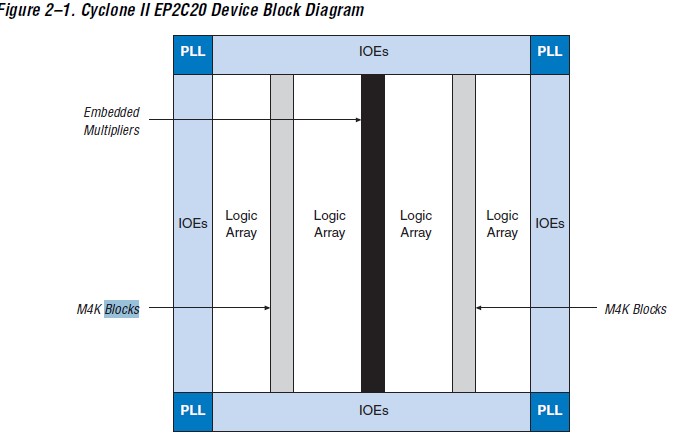

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

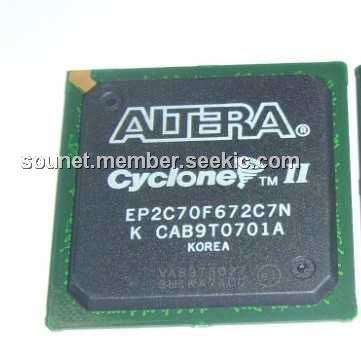

EP2C70F672C7N
EP2C70F672C7N


IC CYCLONE II FPGA 70K 672-FBGA

Data Sheet

0-1: $169.20
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EP2C15AF256C6N
EP2C15AF256C6N


IC CYCLONE II FPGA 15K 256-FBGA

Data Sheet

0-1: $31.20
EP2C15AF256C7N
EP2C15AF256C7N


IC CYCLONE II FPGA 15K 256-FBGA

Data Sheet

0-90: $24.96
EP2C15AF256C8N
EP2C15AF256C8N


IC CYCLONE II FPGA 15K 256-FBGA

Data Sheet

0-1: $20.82
EP2C15AF256I8N
EP2C15AF256I8N


IC CYCLONE II FPGA 15K 256-FBGA

Data Sheet

0-1: $24.96
EP2C15AF484C6N
EP2C15AF484C6N


IC CYCLONE II FPGA 15K 484-FBGA

Data Sheet

0-1: $35.04
EP2C15AF484C7N
EP2C15AF484C7N


IC CYCLONE II FPGA 15K 484-FBGA

Data Sheet

0-60: $28.02
