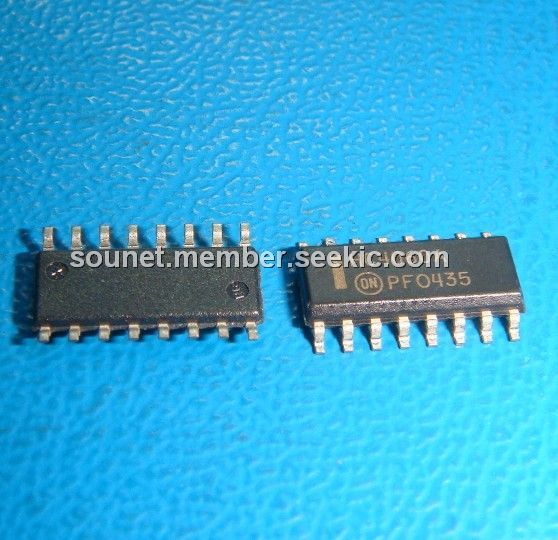

Product Summary
The MC74HC4060 is a 14-stage binary ripple counter with oscillator. The MC74HC4060 inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. The MC74HC4060 consists of 14 master–slave flip–flops and an oscillator with a frequency that is controlled either by a crystal or by an RC circuit connected externally. The output of each flip–flop feeds the next and the frequency at each output is half of that of the preceding one. The state of the MC74HC4060 advances on the negative–going edge of the Osc In. The active–high Reset is asynchronous and disables the oscillator to allow very low power consumption during stand–by operation.
Parametrics
MC74HC4060 absolute maximum ratings: (1)VCC,DC Supply Voltage (Referenced to GND): -0.5 to + 7.0V; (2)Vin, DC Input Voltage (Referenced to GND): -0.5 to VCC + 0.5V; (3)Vout, DC Output Voltage (Referenced to GND): -0.5 to VCC + 0.5V; (4)Iin,DC Input Current, per Pin: ±20mA; (5)Iout,DC Output Current, per Pin: ±25mA; (6)ICC, DC Supply Current, VCC and GND Pins: ±50mA; (7)PD, Power Dissipation in Still Air: 750mW; (8)Tstg, Storage Temperature Range: -65 to + 150℃ ; (9)TL, Lead Temperature, 1 mm from Case for 10 Seconds: 260℃.
Features
MC74HC4060 features: (1)Output Drive Capability: 10 LSTTL Loads; (2)Outputs Directly Interface to CMOS, NMOS, and TTL; (3)Operating Voltage Range: 2 to 6 V; (4)Low Input Current: 1 mA; (5)High Noise Immunity Characteristic of CMOS Devices; (6)In Compliance With JEDEC Standard No. 7A Requirements; (7)Chip Complexity: 390 FETs or 97.5 Equivalent Gates.

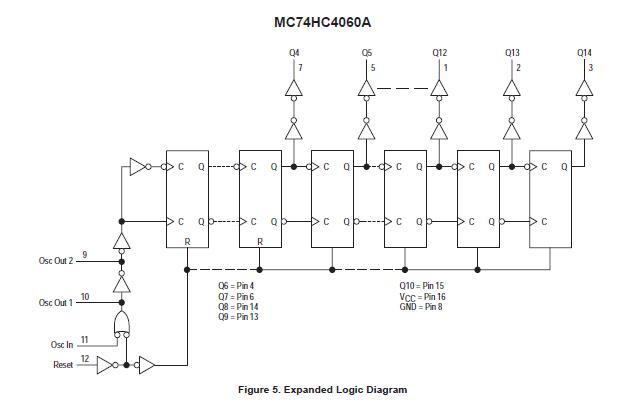

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC74HC4060 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MC74HC4060A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
MC74HC4060ADG |
ON Semiconductor |
Counter Shift Registers 2-6V 14-Stage Binary |
Data Sheet |
|
|
||||||||||||
|
MC74HC4060ADR2G |
ON Semiconductor |
Counter Shift Registers 2-6V 14-Stage Binary |
Data Sheet |
|
|
||||||||||||
|
MC74HC4060ADR2 |
ON Semiconductor |
Counter Shift Registers 2-6V 14-Stage Binary |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC74HC4060AD |
ON Semiconductor |
Counter Shift Registers 2-6V 14-Stage Binary |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC74HC4060ANG |
ON Semiconductor |
Counter Shift Registers LOG CMOS COUNTER 14STAGE |
Data Sheet |
|
|
||||||||||||
|
MC74HC4060ADTG |
ON Semiconductor |
Counter Shift Registers 2-6V 14-Stage Binary |
Data Sheet |
|
|
||||||||||||
