Product Summary
The ATMEGA128L-8AI is a 8-bit microcontroller with 128K bytes in-system programmable flash.
Parametrics
ATMEGA128L-8AI absolute maximum ratings: (1)Storage Temperature: -65 to +150℃; (2)Voltage on any Pin except RESET; (3)with respect to Ground: -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 - 400.0mA.
Features
ATMEGA128L-8AI features: (1)High-performance, Low-power AVR 8-bit Microcontroller; (2)Advanced RISC Architecture; (3)Nonvolatile Program and Data Memories; (4)JTAG (IEEE std. 1149.1 Compliant) Interface; (5)Power-on Reset and Programmable Brown-out Detection; (6)Internal Calibrated RC Oscillator; (7)External and Internal Interrupt Sources; (8)Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby,and Extended Standby Software Selectable Clock Frequency; (9)ATmega103 Compatibility Mode Selected by a Fuse; (10)Global Pull-up Disable.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

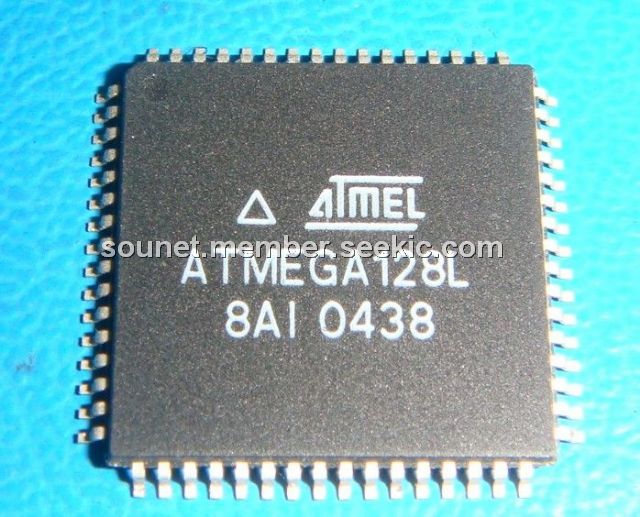

ATMEGA128L-8AI |
Atmel |
8-bit Microcontrollers (MCU) AVR 1K FLSH 64B EE 64B SRAM ADC 8MHZ |
Data Sheet |
Negotiable |
|
|||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
ATMEG163POD |
IC AVR MCU ICE30 40PIN MEGAAVR |
Data Sheet |
Negotiable |
|
||||||
ATmega103 |
Other |
Data Sheet |
Negotiable |
|
||||||
ATMEGA103-6AC |
Atmel |
8-bit Microcontrollers (MCU) TQFP-64 128K FLASH 5 |
Data Sheet |
Negotiable |
|
|||||
ATMEGA103-6AI |
IC MCU 128K 6MHZ A/D IT 64TQFP |
Data Sheet |
Negotiable |
|
||||||
ATMEGA103-6AU |
Other |
Data Sheet |
Negotiable |
|
||||||
ATmega103L |
Other |
Data Sheet |
Negotiable |
|
