Product Summary

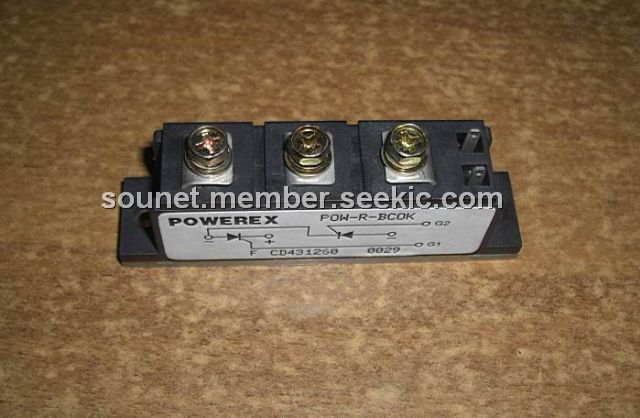

The CD431260 is a Dual SCR Module designed for use in applications requiring phase control and isolated packaging. The module is isolated for easy mounting with other components on a common heatsink. POW-R-BLOKTM has been tested and recognized by the Underwriters Laboratories. The applications of the CD431260 include Bridge Circuits, AC & DC Motor Drives, Battery Supplies, Power Supplies, Large IGBT Circuit Front Ends, Lighting Control, Heat & Temperature Control and Welders.
Parametrics
CD431260 absolute maximum ratings: (1)Repetitive Peak Forward and Reverse Blocking Voltage, VDRM & VRRM: up to 1600 V; (2)Non-Repetitive Peak Reverse Blocking Voltage (t < 5 msec), VRSM: VRRM + 100 V; (3)RMS Forward Current, IT(RMS): 95A; IT(RMS): 135A; (4)Average Forward Current, IT(AV): 60 A; (5)Peak One Cycle Surge Current, Non-Repetitive, ITSM: 1,470A; (6)Peak Three Cycle Surge Current, Non-Repetitive, ITSM: 1,120A; (7)Peak Ten Cycle Surge Current, Non-Repetitive, ITSM: 900A; (8)I2t for Fusing for One Cycle, 8.3 milliseconds, I2t: 8,960A2 sec; (9)Maximum Rate-of-Rise of On-State Current, (Non-Repetitive), di/dt: 150 A/μs; (10)Peak Gate Power Dissipation, PGM: 12 W; (11)Average Gate Power Dissipation, PG(AV): 3 W; (12)Peak Forward Gate Current, IGFM: 3 A; (13)Peak Reverse Gate Voltage, VGRM: 10 V; (14)Operating Temperature, TJ: -40 to +125℃; (15)Storage Temperature, Tstg: -40 to +125℃.
Features
CD431260 features: (1)Electrically Isolated Heatsinking; (2)DBC Alumina (Al2O3) Insulator; (3)Glass Passivated Chips; (4)DBC Alumina (Al2O3) Baseplate; (5)Low Thermal Impedance for Improved Current Capability; (6)UL Recognized (E78240).

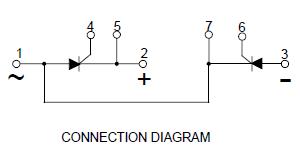

Diagrams
 |
 CD430860A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
CD430890 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
CD430890A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
CD430890B |
|
SCR MOD ISO DUAL 800V 90A |
Data Sheet |
|
|
||||||||||||||||||||
|
CD431090B |
|
SCR MOD ISO DUAL 1000V 90A |
Data Sheet |
|
|
||||||||||||||||||||
 |

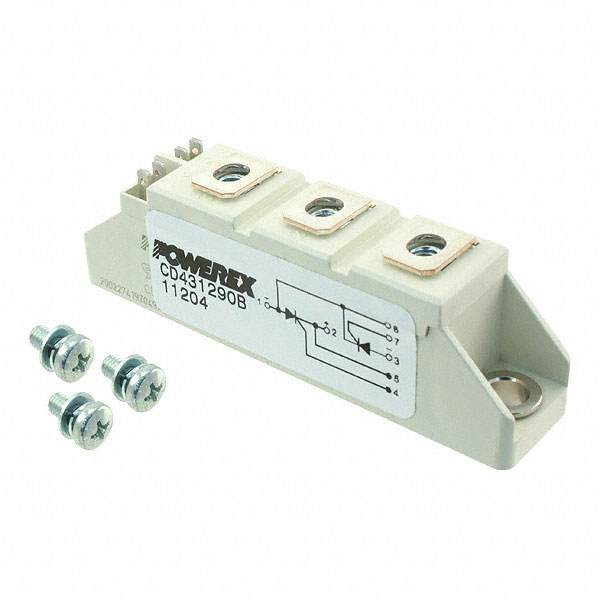

CD431290B |
|
