Product Summary

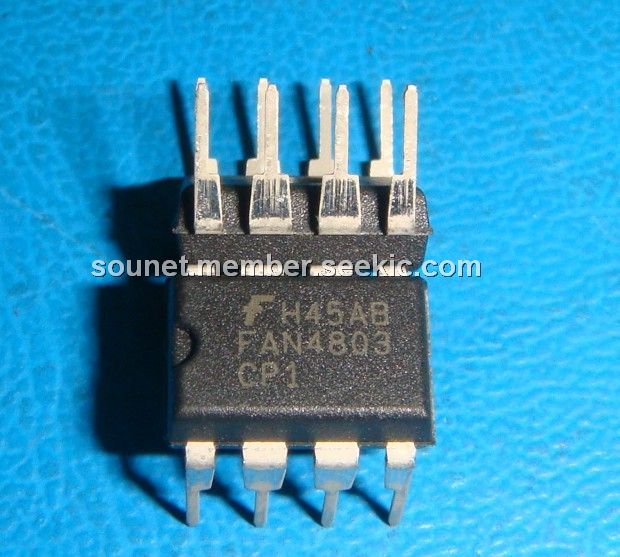

The FAN4803CP1 is a space-saving controller for power factor corrected, switched mode power supplies that offers very low start-up and operating currents. Power Factor Correction (PFC) offers the use of smaller, lower cost bulk capacitors, reduces power line loading and stress on the switching FETs, and results in a power supply fully compliant to IEC1000-3-2 specifications. The FAN4803CP1 includes circuits for the implementation of a leading edge, average current boost type PFC and a trailing edge, PWM.

Parametrics

FAN4803CP1 absolute maxing ratings: (1)ICC Current (average): max=40mA; (2)VCC MAX: max=18.3V; (3)ISENSE Voltage: min=-5V, max=1V; (4)Voltage on Any Other Pin: min=GND-0.3V, max=VCC+0.3V; (5)Peak PFC OUT Current, Source or Sink: max=1A; (6)Peak PWM OUT Current, Source or Sink: max=1A; (7)PFC OUT, PWM OUT Energy Per Cycle: max=1.5μJ; (8)Junction Temperature: max=150℃; (9)Storage Temperature Range: min=-65℃, max=150℃; (10)Lead Temperature (Soldering, 10 sec): max=260℃; (11)Thermal Resistance (θJA)Plastic DIP: max=110℃/W; Plastic SOIC: max=160℃/W.

Features

FAN4803CP1 features: (1)Internally synchronized PFC and PWM in one 8-pin IC; (2)Patented one-pin voltage error amplifier with advanced input current shaping technique; (3)Peak or average current, continuous boost, leading edge PFC (Input Current Shaping Technology); (4)High efficiency trailing-edge current mode PWM; (5)Low supply currents; start-up: 150μ typ., operating: 2mA typ.; (6)Synchronized leading and trailing edge modulation; (7)Reduces ripple current in the storage capacitor between the PFC and PWM sections; (8)Overvoltage, UVLO, and brownout protection; (9)PFC VCCOVP with PFC Soft Start.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FAN4803CP1
FAN4803CP1
Fairchild Semiconductor
Power Factor Correction ICs PFC/PWM Controller Combo
Data Sheet
Negotiable
FAN4803CP1_Q
FAN4803CP1_Q
Fairchild Semiconductor
Power Factor Correction ICs PFC/PWM Controller Combo
Data Sheet
Negotiable
