Product Summary

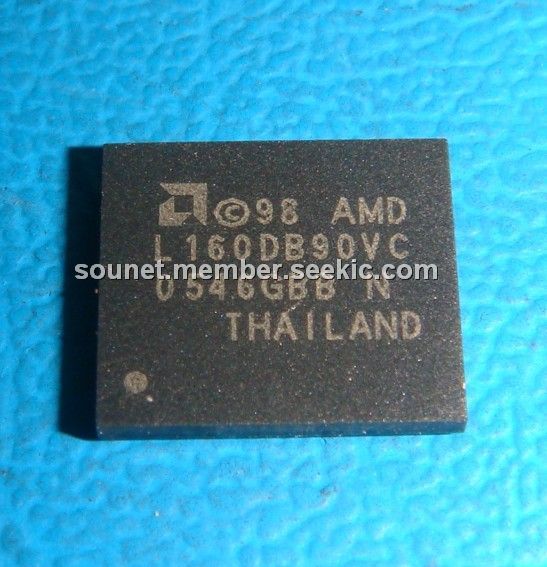

The L160DB90VC is a 16 Mbit, 3.0 Volt-only flash memory organized as 2,097,152 bytes or 1,048,576 words. The device is offered in 48-ball FBGA, 44-pin SO, and 48-pin TSOP packages. The word-wide data(x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–DQ0. The L160DB90VC is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 V VPP or 5.0 VCC are not required for write or erase operations. It can also be programmed in standard EPROM programmers.

Parametrics

L160DB90VC absolute maxing ratings: (1)Storage Temperature Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground VCC: -0.5V to +4.0V; (4)A9, OE, and RESET: -0.5V to +12.5V; (5)All other pins: -0.5V to VCC+0.5V; (6)Output Short Circuit Current: 200mA.

Features

L160DB90VC features: (1)Single power supply operation; (2)Manufactured on 0.23 μm process technology; (3)High performance; (4)Ultra low power consumption (typical values at 5 MHz); (5)Flexible sector architecture; (6)Unlock Bypass Program Command; (7)Top or bottom boot block configurations available; (8)Embedded Algorithms; (9)Minimum 1,000,000 write cycle guarantee per sector; (10)20-year data retention at 125℃; (11)Package option; (12)CFI (Common Flash Interface) compliant; (13)Compatibility with JEDEC standards; (14)Data Polling and toggle bits; (15)Ready/Busy pin (RY/BY); (16)Erase Suspend/Erase Resume; (17)Hardware reset pin (RESET).

Diagrams
