Product Summary
The LBB126 is a 250V, 170mA, 15Ω 2-Form-B relay. It features lower on-resistance combined with enhanced peak load current handling capability. The applications of the LBB126 inlcude Telecommunications, Telecom Switching, Tip/Ring Circuits, Modem Switching (Laptop, Notebook, Pocket Size), Hookswitch, Dial Pulsing, Ground Start, Ringer Injection, Instrumentation, Multiplexers, Data Acquisition, Electronic Switching, I/O Subsystems, Meters (Watt-Hour, Water, Gas), Medical Equipment—Patient/Equipment Isolation, Security, Aerospace and Industrial Controls.
Parametrics
LBB126 absolute maximum ratings: (1)Input Power Dissipation: 150 mW max; (2)Input Control Current: 50 mA max; Peak (10ms): 1 A max; (3)Reverse Input Voltage: 5 V max; (4)Total Power Dissipation: 8002 mW max; (5)Isolation Voltage, Input to Output: 3750 VRMS min; (6)Operational Temperature: -40 to +85℃; (7)Storage Temperature: -40 to +125℃; (8)Soldering Temperature: +260℃.
Features
LBB126 features: (1)Small 8 Pin DIP Package; (2)Low Drive Power Requirements (TTL/CMOS Compatible); (3)No Moving Parts; (4)High Reliability; (5)Arc-Free With No Snubbing Circuits; (6)3750VRMS Input/Output Isolation; (7)FCC Compatible; (8)VDE Compatible; (9)No EMI/RFI Generation; (10)Machine Insertable, Wave Solderable; (11)Surface Mount and Tape & Reel Versions Available.

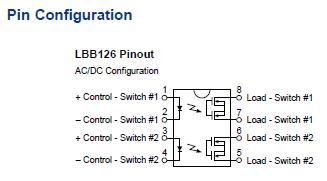

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LBB126 |
Clare |
Solid State Relays Dual Pole |
Data Sheet |
Negotiable |
|
||||
|
LBB126P |
Clare |
Solid State Relays Dual Pole |
Data Sheet |
Negotiable |
|
||||
|
LBB126PTR |
Clare |
Solid State Relays Dual Pole |
Data Sheet |
Negotiable |
|
||||
|
LBB126STR |
Clare |
Solid State Relays Dual Pole |
Data Sheet |
Negotiable |
|
||||
|
LBB126S |
Clare |
Solid State Relays Dual Pole |
Data Sheet |
Negotiable |
|
||||
