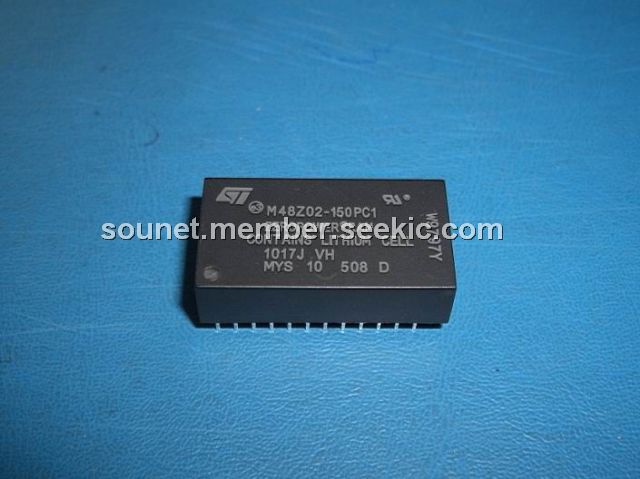

M48Z02-150PC1

2K x 8, non-volatile static RAM, 150ns, 24DIP, 4.75 V ~ 5.5 V, RoHS Compliant

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~3.00

PartNumber:: M48Z02-150PC1

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Kelly Huang's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-05

From Other Seller

Part Number:M48Z02-150PC1
US $2.00 - 3.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

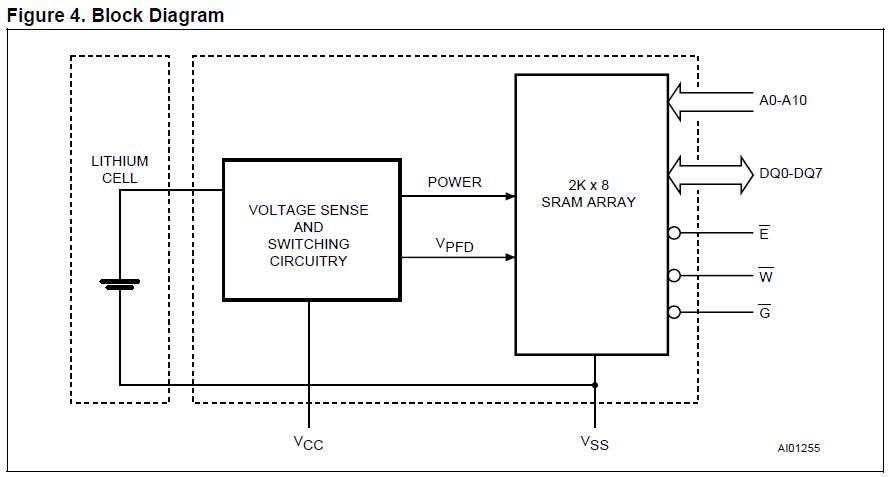

The M48Z02-150PC1 is a 2K x 8 non-volatile static RAM. The device is pin and functional compatible with the DS1220. The M48Z02-150PC1 button cell has sufficient capacity and storage life to maintain data functionality for an accumulated time period of at least 10 years in the absence of power over commercial operating temperature range. The M48Z02-150PC1 is a non-volatile pin and function equivalent to any JEDEC standard 2K x 8 SRAM. The M48Z02-150PC1 is also easily fits into many ROM, EPROM, and EEPROM sockets, providing the non-volatility of PROMs without any requirement for special WRITE timing or limitations on the number of WRITEs that can be performed.

Parametrics

M48Z02-150PC1 absolute maximum ratings: (1)TA, Ambient Operating Temperature: 0 to 70℃; (2)TSTG, Storage Temperature (VCC Off, Oscillator Off): –40 to 85℃; (3)TSLD, Lead Solder Temperature for 10 seconds: 260℃; (4)VIO, Input or Output Voltages: –0.3 to 7 V; (5)VCC, Supply Voltage: –0.3 to 7 V; (6)IO, Output Current: 20 mA; (7)PD, Power Dissipation: 1 W.

Features

M48Z02-150PC1 features: (1)integrated, ultra low power sram and power-fail control circuit; (2)unlimited write cycles; (3)read cycle time equals write cycle time; (4)automatic power-fail chip deselect and write protection; (5)write protect voltages; (6)self-contained battery in the caphat dip package; (7)pin and function compatible with jedec standard 2K x 8 SRAMs.
