Product Summary
The 74HC4052A utilizes silicon–gate CMOS technology to achieve fast propagation delays, low ON resistances, and low OFF leakage currents. This analog multiplexer/demultiplexer control analog voltages that may vary across the complete power supply range (from VCC to VEE). The Channel–Select and Enable inputs are compatible with standard CMOS outputs; with pullup resistors it is compatible with LSTTL outputs. The 74HC4052A has been designed so that the ON resistance (Ron) is more linear over input voltage than Ron of metal–gate CMOS analog switches.
Parametrics
74HC4052A absolute maxing ratings: (1)VCC Positive DC Supply Voltage (Referenced to GND): -0.5 to +7.0V; (Referenced to VEE): -0.5 to +14.0V; (2)VEE Negative DC Supply Voltage (Referenced to GND): -7.0 to +5.0V; (3)VIS Analog Input Voltage: VEE-0.5 to VCC+0.5; (4)Vin Digital Input Voltage (Referenced to GND): -0.5 to VCC+0.5V; (5)I DC Current, Into or Out of Any Pin: ±25mA; (6)PD Power Dissipation in Still Air, Plastic DIP: 750mW; EIAJ/SOIC Package: 500mW; TSSOP Package: 450mW; (7)Tstg Storage Temperature Range: -65 to +150℃; (8)TL Lead Temperature, 1 mm from Case for 10 Seconds Plastic DIP, SOIC or TSSOP Package: 260℃.
Features
74HC4052A features: (1)Fast Switching and Propagation Speeds; (2)Low Crosstalk Between Switches; (3)Diode Protection on All Inputs/Outputs; (4)Analog Power Supply Range (VCC-VEE) = 2.0 to 12.0 V; (5)Digital (Control) Power Supply Range (VCC-GND) = 2.0 to 6.0 V; (6)Improved Linearity and Lower ON Resistance Than Metal-Gate Counterparts; (7)Low Noise; (8)In Compliance With the Requirements of JEDEC Standard No. 7A.

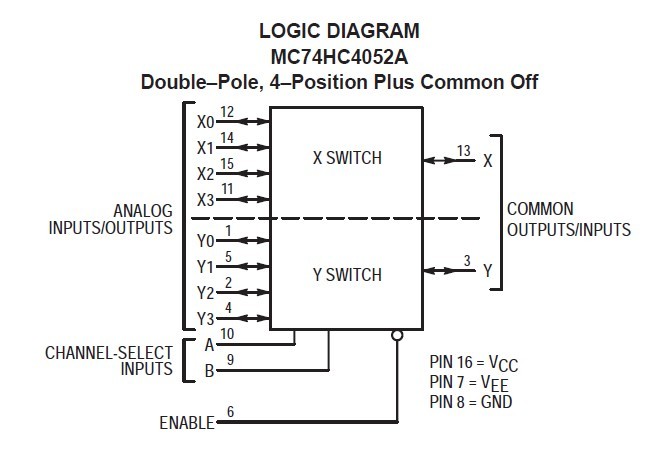

Diagrams
 |
