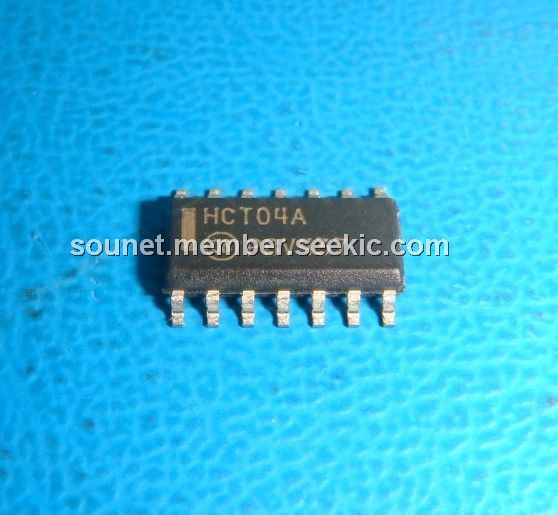

Product Summary

The MC74HCT04A is a hex inverter with LSTTL–Compatible Inputs and High–Performance Silicon–Gate CMOS. The MC74HCT04A may be used as a level converter for interfacing TTL or NMOS outputs to High–Speed CMOS inputs.

Parametrics

MC74HCT04A absolute maximum ratings: (1)DC supply voltage: -0.5 to +7.0 V; (2)DC input voltage: -0.5 to VCC+0.5 V; (3)DC output voltage: -0.5 to VCC+0.5 V; (4)DC input current, per pin: ±20 mA; (5)DC output current, per pin: ±25 mA; (6)DC supply current, VCC and GND pins: ±50 mA; (7)power dissipation in still air: 750 mW; (8)storage temperature range: -65 to +150 ℃; (9)lead temperature: 260 ℃.

Features

MC74HCT04A features: (1)Output Drive Capability: 10 LSTTL Loads; (2)TTL/NMOS-Compatible Input Levels; (3)Outputs Directly Interface to CMOS, NMOS and TTL; (4)Operating Voltage Range: 4.5 to 5.5V; (5)Low Input Current: 1mA; (6)In Compliance With the JEDEC Standard No. 7A Requirements; (7)Chip Complexity: 48 FETs or 12 Equivalent Gates.

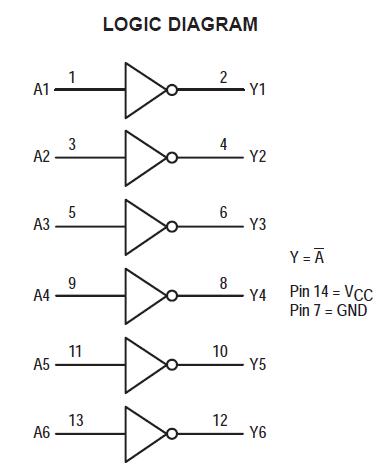

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC74HCT04A
MC74HCT04A
Other

Data Sheet
Negotiable
MC74HCT04AD
MC74HCT04AD
ON Semiconductor
Inverters 5V Hex w/LSTTL Input
Data Sheet
Negotiable
MC74HCT04ADG
MC74HCT04ADG
ON Semiconductor
Inverters 5V Hex w/LSTTL Input
Data Sheet
0-1: $0.17
1-25: $0.13
25-100: $0.09
100-500: $0.07
MC74HCT04ADR2G
MC74HCT04ADR2G
ON Semiconductor
Inverters 5V Hex w/LSTTL Input
Data Sheet
0-1: $0.31
1-25: $0.18
25-100: $0.15
100-500: $0.09
MC74HCT04ADTR2
MC74HCT04ADTR2
ON Semiconductor
Inverters 5V Hex w/LSTTL Input
Data Sheet
Negotiable
MC74HCT04ADR2
MC74HCT04ADR2
ON Semiconductor
Inverters 5V Hex w/LSTTL Input
Data Sheet
Negotiable
MC74HCT04ANG
MC74HCT04ANG
ON Semiconductor
Inverters 5V Hex w/LSTTL Input
Data Sheet
0-1: $0.30
1-25: $0.25
25-100: $0.18
100-500: $0.15
MC74HCT04ADTR2G
MC74HCT04ADTR2G
ON Semiconductor
Inverters 5V Hex w/LSTTL Input
Data Sheet
0-1: $0.14
1-25: $0.12
25-100: $0.09
100-500: $0.08
