Product Summary

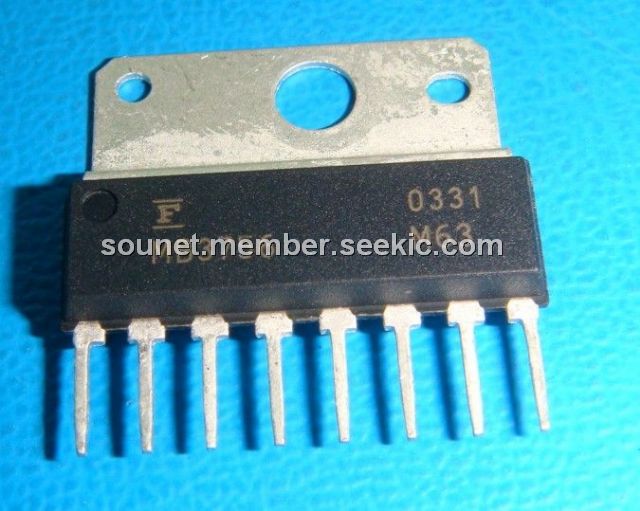

The MB3756 is a monolithic voltage regulator with three outputs which is fabricated with a bipolar linear IC technology. Two alternately exchangeable outputs are provided for two stabllized output levels and controlled by an external control signal. The MB3756 is packaged in as 8 pin single-in-line package with a heat radiation fin to allow large power consumption.

Parametrics

MB3756 absolute maximum ratings: (1)Input voltage VIN: 18V; (2)Power dissipation PD: 1*1W; 4*2W; (3)Operating temperature TC: -20 to +75℃; (4)Storage temperature Tstg: -55 to +125℃.

Features

MB3756 features: (1)No need for external components; (2)Good balance between three outputs; (3)On-chip noise protection circuitry; (4)On-chip overload current protection and theemal protection circuitry; (5)Good mountability; (6)High output current: 200mA typical for V02 output; 100mA typical for V00, V01 outputs.

Diagrams

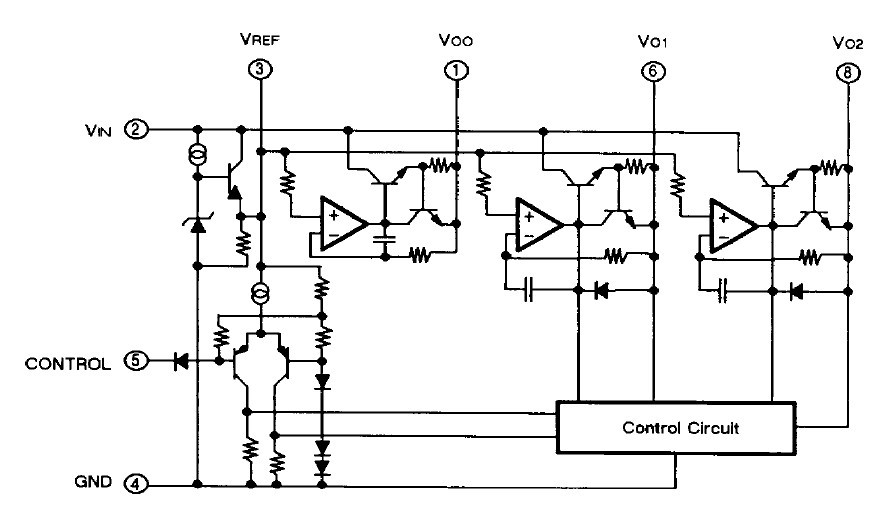

MB3756 equivalent circuit
