Product Summary

The MC1741U is designed for use as a summing amplifier, intergrator, or amplifier with operating characterictics as a function of the external feedback components.

Parametrics

MC1741U absolute maximum ratings: (1)power supply voltage: +22 V; (2)input differential voltage: ±30 Volts; (3)input common mode voltage: ±15 Volts; (4)operting ambient temperature range: -55 to +125℃; (5)storage temperature range: -65 to +150℃.

Features

MC1741U features: (1)no frequency compersation required; (2)short-circuit protection; (3)offset voltage null capability; (4)wide common-mode and differential voltage ranges; (5)low power consumption; (6)no latch up.

Diagrams

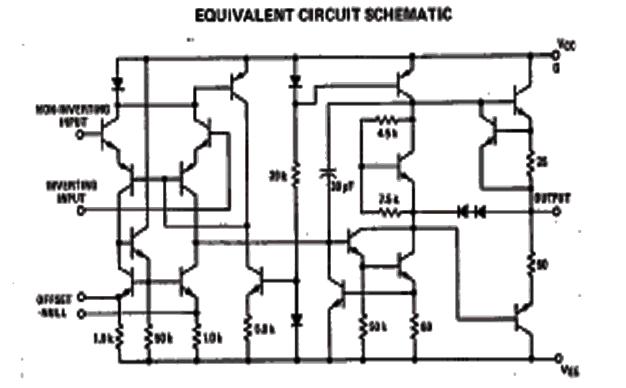

MC1741U block diagram
