Product Summary

The LM79L12ACM is a 3-Terminal Negative Regulator. The device is designed using the latest computer techniques for optimizing the packaged IC thermal/electrical performance. The LM79L12ACM is available in the 3-lead TO-92 package, 8-lead SOIC package, and the 6-Bump micro SMD package. For output voltage other than -5V, -12V and -15V, the LM79L12ACM provides an output voltage range from 1.2V to 47V.

Parametrics

LM79L12ACM absolute maximum ratings: (1)Input Voltage, VO = -5V, -12V, -15V -35V; (2)Internal Power Dissipation: Internally Limited; (3)Operating Temperature Range: 0 to +70℃; (4)Maximum Junction Temperature: +125℃; (5)Storage Temperature Range: -55 to +150℃; (6)Lead Temperature (Soldering, 10 sec.): 260℃.

Features

LM79L12ACM features: (1)Preset output voltage error is less than ±5% overload, line and temperature; (2)Specified at an output current of 100mA; (3)Easily compensated with a small 0.1μF output capacitor; (4)Internal short-circuit, thermal and safe operating area protection; (5)Easily adjustable to higher output voltages; (6)Maximum line regulation less than 0.07% VOUT/V; (7)Maximum load regulation less than 0.01% VOUT/mA; (8)See AN-1112 for micro SMD considerations.

Diagrams

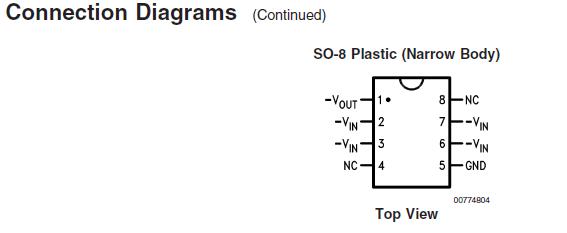

LM79L12ACM conncetion diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

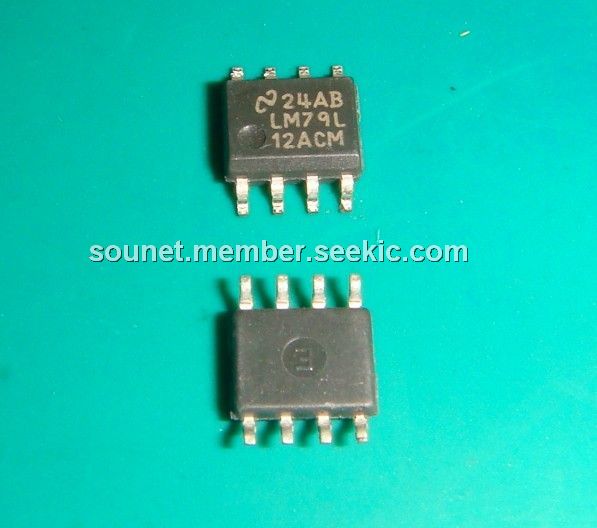

LM79L12ACM
LM79L12ACM
National Semiconductor (TI)
Linear Regulators - Standard
Data Sheet
0-1615: $0.22
1615-2565: $0.20
2565-5035: $0.19
5035-10070: $0.17
LM79L12ACM/NOPB
LM79L12ACM/NOPB
National Semiconductor (TI)
Linear Regulators - Standard 3-Terminal Neg Vltg
Data Sheet
0-1: $0.46
1-25: $0.35
25-100: $0.31
100-250: $0.27
LM79L12ACMX/NOPB
LM79L12ACMX/NOPB
National Semiconductor (TI)
Linear Regulators - Standard
Data Sheet
0-1: $0.52
1-25: $0.42
25-100: $0.38
100-250: $0.33
LM79L12ACMX
LM79L12ACMX
National Semiconductor (TI)
Linear Regulators - Standard
Data Sheet
0-2500: $0.20
2500-5000: $0.19
5000-10000: $0.17
