Product Summary

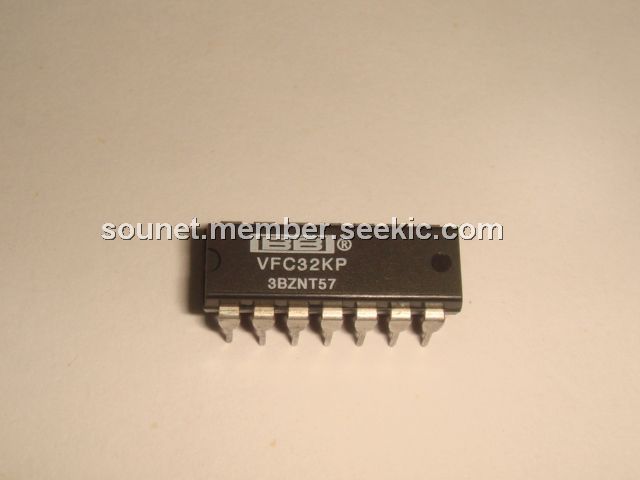

TheVFC32KP voltage-to-frequency converter provides an output frequency accurately proportional to its input voltage. The digital open-collector frequency output is compatible with all common logic families. Its integrating input characteristics give the VFC32KP excellent noise immunity and low nonlinearity. Full-scale output frequency is determined by an external capacitor and resistor and can be scaled over a wide range. The VFC32KP can also be configured as a frequency-to-voltage converter. The VFC32 is available in 14-pin plastic DIP, SO-14 surface-mount, and metal TO-100 packages. Commercial, industrial, and military temperature range models are available.
Parametrics
Absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Output Sink Current (FOUT): 50mA; (3)Output Current (VOUT): +20mA; (4)Input Voltage, –Input: ±Supply; (5)Input Voltage, +Input : ±Supply; (6)Comparator Input: ±Supply; (7)Storage Temperature Range: VFC32BM, SM: –65°C to +150°C; VFC32KP, KU: –25°C to +85°C.
Features
Features: (1)operation up to 500khz; (2)excellent linearity: ±0.01% max at 10khz fs; ±0.05% max at 100khz fs; (3)v/f or f/v conversion; (4)monotonic; (5)voltage or current input.

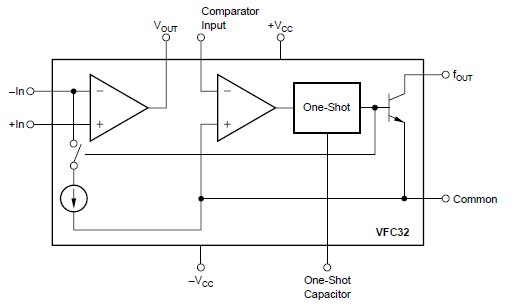

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VFC32KP |
Texas Instruments |
Voltage to Frequency & Frequency to Voltage VOLTAGE-TO-FREQUENCY CONVERTER |
Data Sheet |
|
|
||||||||||||
|
VFC32KPG4 |
Texas Instruments |
Voltage to Frequency & Frequency to Voltage VOLTAGE-TO-FREQUENCY CONVERTER |
Data Sheet |
|
|
||||||||||||
