Product Summary

The MG50G6EL1 is a module.

Parametrics

MG50G6EL1 absolute maximum ratings: (1)CEO: 600V; (2)VCEX(SUS): 600V; (3)VSEO: 6V; (4)IC: 50A; (5)ICP: 100A; (6)IA: 5.0A; (7)IF: 50A; (8)IFM: 100A; (9)PC: 300W; (10)TJ: 150℃; (11)TSTG: -40 TO 125℃; (12)VISO: 2500V.

Diagrams

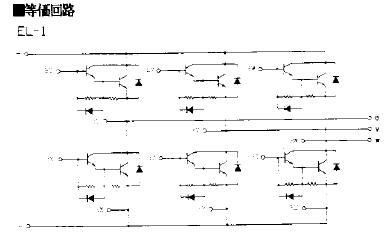

MG50G6EL1 circuit

MG50Q2YS40
MG50Q2YS40
