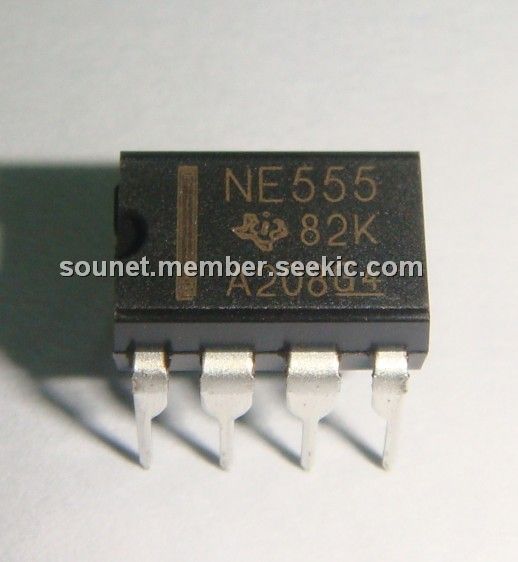

Product Summary

The NE555 is a precision timing circuit capable of producing accurate time delays or oscillation. In the time-delay or monostable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the astable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor.

Parametrics

NE555 absolute maximum ratings: (1)VCC Supply voltage: 18V; (2)VI Input voltage CONT, RESET, THRES, TRIG: VCC V; (3)IO Output current: ±225 mA; (4)θJA Package thermal impedance D package: 97℃/W; P package: 85℃/W; PS package: 95℃/W; PW package 149℃/W; (5)θJC Package thermal impedance FK package: 5.61℃/W; JG package 14.5℃/W; (6)TJ Operating virtual junction temperature: 150℃; (7)Tstg Storage temperature range: 150℃.

Features

NE555 features: (1)Timing From Microseconds to Hours; (2)Adjustable Duty Cycle; (3)Astable or Monostable Operation; (4)TTL-Compatible Output Can Sink or Source up to 200 mA.

Diagrams

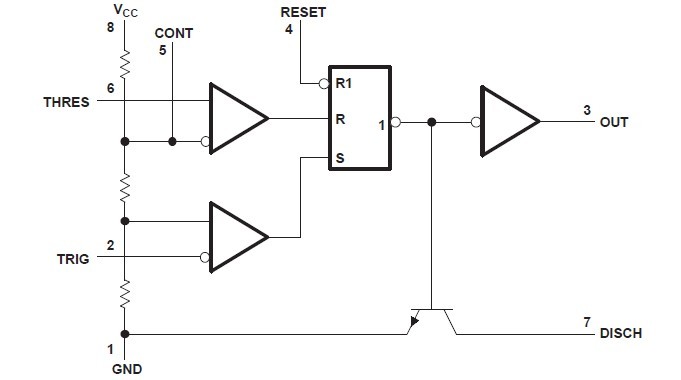

NE555 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
NE555
NE555

Other


Data Sheet

Negotiable
NE555C
NE555C

Other


Data Sheet

Negotiable
NE555D
NE555D

STMicroelectronics

Timers & Support Products General Purp Single

Data Sheet

0-1: $0.43
1-10: $0.36
10-100: $0.27
100-250: $0.24
NE555DG4
NE555DG4

Texas Instruments

Timers & Support Products SINGLE PRECISION TIMER

Data Sheet

0-1: $0.24
1-25: $0.19
25-100: $0.14
100-250: $0.10
NE555DR
NE555DR

Texas Instruments

Timers & Support Products Precision

Data Sheet

0-1: $0.33
1-25: $0.19
25-100: $0.15
100-250: $0.11
NE555DRE4
NE555DRE4

Texas Instruments

Timers & Support Products Precision

Data Sheet

0-1: $0.22
1-25: $0.15
25-100: $0.12
100-250: $0.10
NE555DRG4
NE555DRG4

Texas Instruments

Timers & Support Products Precision

Data Sheet

0-1: $0.22
1-25: $0.18
25-100: $0.13
100-250: $0.09
NE555DT
NE555DT

STMicroelectronics

Timers & Support Products General Purp Single

Data Sheet

0-1: $0.21
1-10: $0.16
10-100: $0.13
100-250: $0.11
