Product Summary

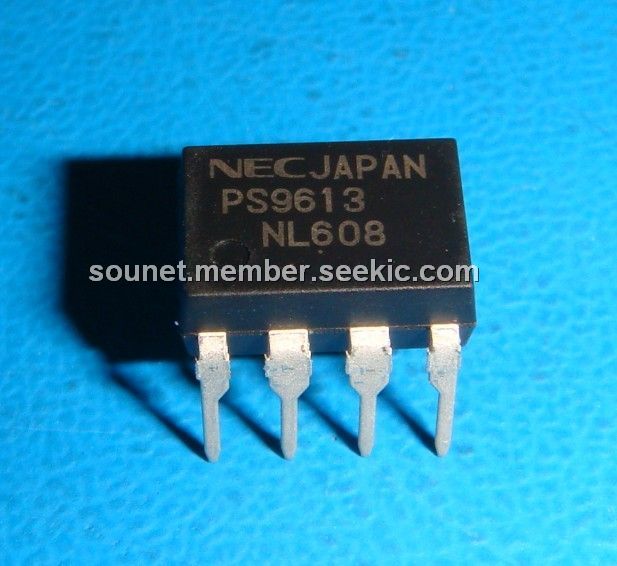

The PS9613 is a optically coupled isolator containing a GaAlAs LED on the input side and a photo diode and a signal processing circuit on the output side on one chip. The PS9613 is in a plastic DIP (Dual In-line Package).
Parametrics
PS9613 absolute maximum ratings: (1)Forward Current IF: 25 mA; (2)Reverse Voltage VR: 3.0 V; (3)Supply Voltage VCC: -0.5 to +35 V; (4)Output Voltage VO: -0.5 to +35 V; (5)Output Current IO: 15 mA; (6)Power Dissipation PC: 100 mW; (7)Isolation Voltage 1 BV: 5 000 Vr.m.s.; (8)Operating Ambient Temperature TA: -40 to +100 ℃; (9)Storage Temperature Tstg: -55 to +125 ℃.
Features
PS9613 features: (1)High instantaneous common mode rejection voltage (CMH, CML = 5 kV/ms MIN.); (2)High-speed response (tPHL = 500 ns MAX., tPLH = 750 ns MAX.); (3)Maximum propagation delays (tPLH - tPHL = 270 ns TYP.); (4)Pulse width distortion ( | tPHL - tPLH | = 270 ns TYP.); (5)Ordering number of taping product: PS9613L-E3, E4: 1 000 pcs/reel; (6)UL approved: File No. E72422 (S); (7)VDE0884 approved (Option).

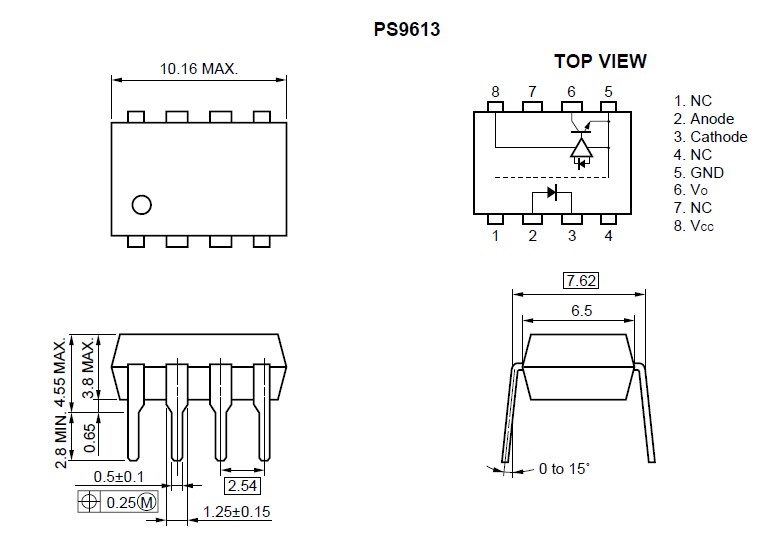

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS9613-A |
CEL |
High Speed Optocouplers 1Mbps Open Collector |
Data Sheet |
Negotiable |
|
||||||
 |
PS9613L |
|
OPTOISOLATOR HS DIGITAL OC 8S |
Data Sheet |
Negotiable |
|
||||||
|
PS9613L-A |
|
PHOTOCOUPLER HS OC 8-SMD |
Data Sheet |
Negotiable |
|
||||||
|
PS9613L-E3 |
|
OPTOCOPL HS DIGITAL OC 8SMD T |
Data Sheet |
Negotiable |
|
||||||
|
PS9613L-E3-A |
CEL |
High Speed Optocouplers 1Mbps Open Collector |
Data Sheet |
|
|
||||||
 |
PS9613 |
|
OPTOISOLATOR HS DIGITAL OC 8D |
Data Sheet |
Negotiable |
|
||||||
