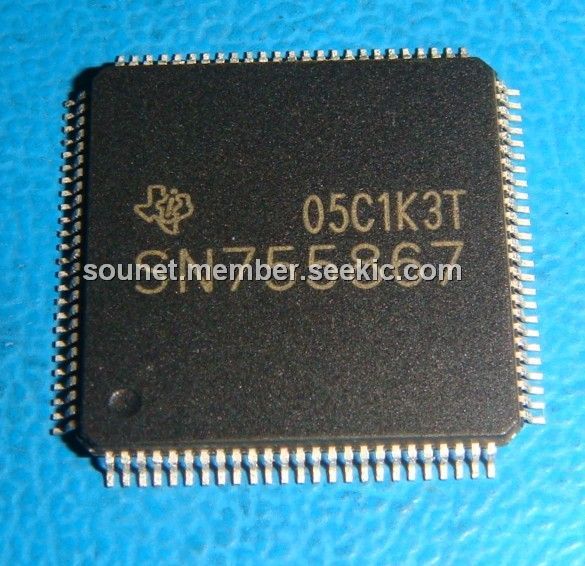

Product Summary
The SN755867 is a monolithic BIDFET interated circuit designed to perform the line-select operation of a matrix-addressable display. The device diode-clamped CMOS inputs. The outputs of SN755867 are normally low and acn be selectively switched high when the strobe input is low. Selection of the outputs is achieved through the data S0 and S1 inputs. The 8-bit data stored internally in the SN755867 is inverted and sent to one of four output sections by the 2-line to 4-line decoder.
Parametrics
SN755867 absolute maximum ratings: (1)supply voltage, VCC1: 13.8 V; (2)supply voltage, VCC2: 15 V; (3)operating free-air temperature range: -55 to 125℃; (4)storage temperature range: -65 to 150℃; (5)lead temperature 1,6 mm from case for 60 seconds: J package: 300℃; (6)lead temperature 1,6 mm from case for 10 seconds: J package: 260℃; (7)case temperature for 60 seconds: FD or FJ package: 260℃; (8)case temperature for 10 seconds: FN package: 260℃.
Features
SN755867 features: (1)controls 32 electrodes; (2)100-V totem-pole outputs; (3)low standby power consumption; (4)all outputs contain sink and source clamp diodes; (5)15-mA steady-state output current rugged DMOS outputs; (6)CMOS inputs; (7)direct replacement for SN55500D and SN75500A.

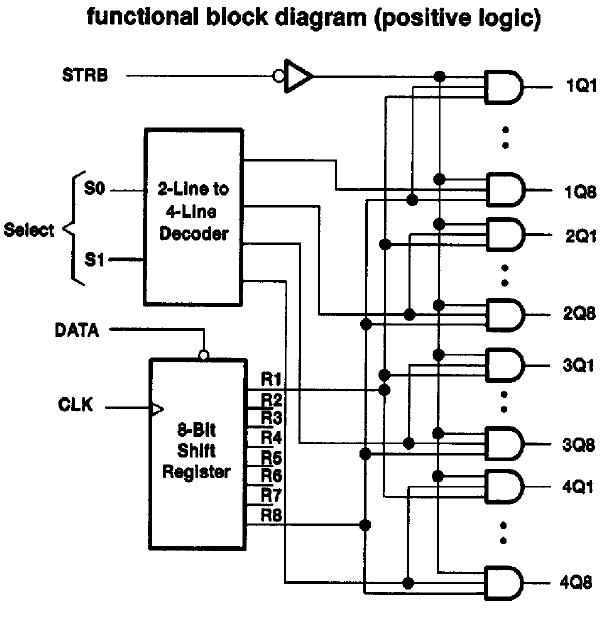

Diagrams
 |
