Product Summary
The KM681000CLP-7 is a 128Kx8 bit Low Power CMOS Static RAM. It is fabricated by SAMSUNG’s advanced CMOS process technology. The KM681000CLP-7 supports various operating temperature ranges and have various package types for user flexibility of system design. The KM681000CLP-7 also supports low data retention voltage for battery backup operation with low data retention current.
Parametrics
KM681000CLP-7 absolute maximum ratings: (1)Voltage on any pin relative to Vss: -0.5 to 7.0 V; (2)Voltage on Vcc supply relative to Vss: -0.5 to 7.0 V; (3)Power Dissipation: 1.0 W; (4)Storage temperature: -65 to 150 ℃; (5)Operating Temperature: 0 to 70 ℃; (6)Soldering temperature and time: 260℃, 10sec (Lead Only).
Features
KM681000CLP-7 features: (1)Process Technology: TFT; (2)Organization: 128Kx8; (3)Power Supply Voltage: 4.5~5.5V; (4)Low Data Retention Voltage: 2V(Min); (5)Three state output and TTL Compatible; (6)Package Type: 32-DIP-600, 32-SOP-525, 32-TSOP1-0820F/R.

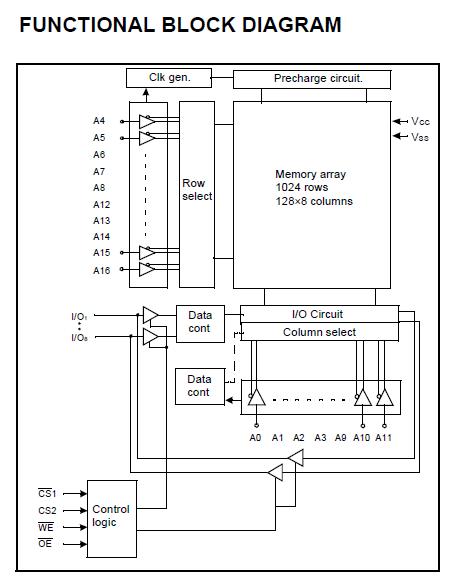

Diagrams
 |
