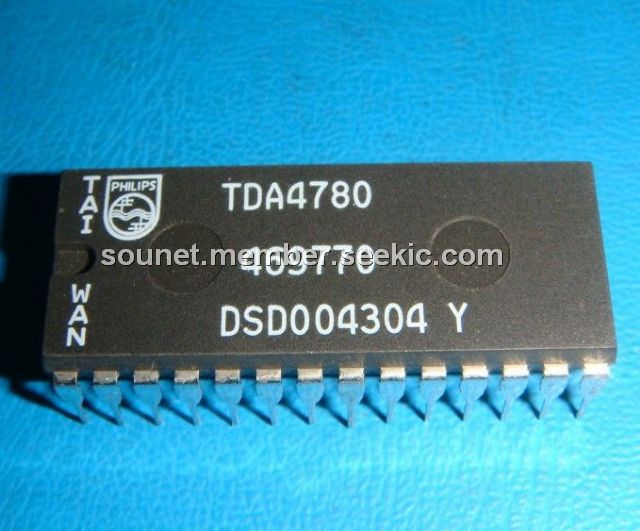

TDA4780

RGB video processor, automatic cut-off control, gamma adjust, DIP28, Two peak drive limiters

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.75~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.75~3.00

PartNumber:: TDA4780

Brand:: Philips Electronics India Limited - PHILIPS | Pack: DIP | D/C: 97+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Kelly Huang's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-11

From Other Seller

Part Number:TDA4780
US $0.75 - 3.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TDA4780 is a monolithic integrated circuit with a luminance and a colour difference interface for video processing in TV receivers. The primary function of the TDA4780 is to process the luminance and colour difference signals from a colour decoder.

Parametrics

TDA4780 absolute maximum rating: (1)VP supply voltage: -0.1 +9.0 V; (2)V10, 11, 12 (RGB)1 inputs: -0.1 VP V; (3)V2, 3, 4 (RGB)2 inputs: -0.1 VP V; (4)V8, 7, 6 Y, CD-input:s -0.1 VP V; (5)V13, 1 switch 1 and switch 2 input voltage: -0.1 VP V; (6)V25, 23, 21, 17 black level, leakage storage: -0.1 VP V; (7)V14 sandcastle: -0.7 VP + 5.8 V; (8)V15 average current information: -0.7 VP + 0.7 V; (9)V16 peak drive storage: -0.1 VP V; (10)V18 peak dark storage: -0.1 VP V; (11)V19 cut-off control input voltage: -0.7 VP + 0.7 V; (12)V27, 28 I2C-bus: SDA and SCL voltage: -0.1 VP V.

Features

TDA4780 features: (1)Gamma adjust; (2)Dynamic black control (adaptive black); (3)All input signals clamped on black-levels; (4)Automatic cut-off control, alternative: output clamping on fixed levels; (5)Three adjustable reference voltage levels via I2C-bus for automatic cut-off control; (6)Luminance/colour difference interface; (7)Two luminance input levels allowed; (8)Two RGB interfaces controlled by either fast switches or by I2C-bus; (9)Two peak drive limiters, selection via I2C-bus; (10)Blue stretch, selection via I2C-bus; (11)Luminance output for scan velocity modulation (SCAVEM); (12)Extra luminance output; same pin can be used as hue control output; (13)Non standard operations like 50 Hz/32 kHz are also possible; (14)Either 2 or 3 level sandcastle pulse applicable; (15)High bandwidth for 32 kHz application; (16)White point adjusts via I2C-bus.
