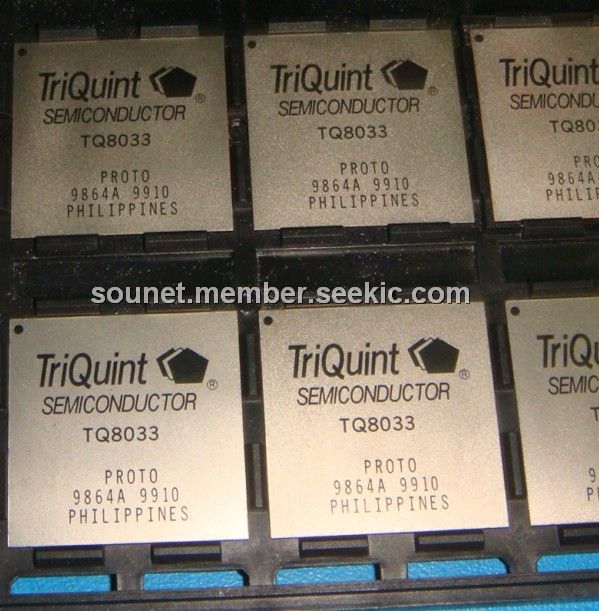

TQ8033

digital crosspoint switch, BGA, 0 to 7.0 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $38.00~90.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $38.00~90.00

PartNumber:: TQ8033

Brand:: TriQuint Semiconductor - TriQuint | Pack: BGA | D/C: 00+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Kelly Huang's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-12

From Other Seller

Part Number:TQ8033
US $38.00 - 90.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TQ8033 is a non-blocking 64 x 33 digital crosspoint switch that supports data rates greater than 1.5 gigabits per second per channel. The TQ8033’s non-blocking architecture allows any combination of output-to-input programming, supporting both broadcast and multicast applications. Using 33 independent 64:1 multiplexers, each output channel can be programmed to any input without restriction or degradation of signal fidelity. The applications of the TQ8033 include Telecom/datacom switching including Fibre Channel and Gigabit Ethernet, Hubs and routers, Video switching including High-Definition TV (HDTV).

Parametrics

TQ8033 absolute maximum ratings: (1)Storage Temperature: –65 to 150 ℃; (2)Junction Temperature: –65 to 150 ℃; (3)Case Temperature w/bias: 0 to 100 ℃; (4)Supply Voltage: 0 to 7.0 V; (5)Voltage to any input: –0.5 to VDD + 0.5 V; (6)Voltage to any output: –0.5 to VDD + 0.5 V; (7)Current to any input: –1.0 to 1.0 mA; (8)Current from any output: 40.0 mA; (9)Power Dissipation of output: 50.0 mW.

Features

TQ8033 features: (1)>1.5 Gb/s/port data rate, >50 Gb/s aggregate bandwidth; (2)Differential PECL data path with 64 inputs and 33 outputs; (3)Non-blocking architecture supports Broadcast and Multicast operation; (4)Data inputs internally biased for AC coupling; (5)Low jitter and signal skew; (6)Double-buffered configuration latches; (7)TTL configuration control inputs; (8)304-pin BGA package; (9)Single +5V supply.
