Product Summary

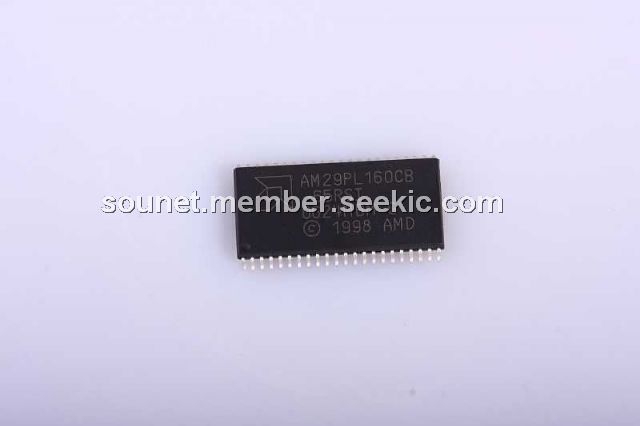

The AM29PL160CB-65RSI is a 16 Mbit, 3.0 Volt-only Page mode Flash memory device organized as 2,097,152 bytes or 1,048,576 words.The device is offered in a 44-pin SO or a 48-pin TSOP package. The AM29PL160CB-65RSI offers access times of 65, 70, 90, and 120 ns, allowing high speed microprocessors to operate without wait states.
Parametrics
Absolute maximum ratingS: (1)Storage Temperature Plastic Packages: -65°C to +150°C; (2)Ambient Temperature with Power Applied: -65°C to +125°C; (3)Voltage with Respect to Ground: VCC (Note 1): –0.5 V to +4.0 V; A9 and OE(Note 2): –0.5 V to +13.0 V; All other pins (Note 1): –0.5 V to +5.5 V; Output Short Circuit Current (Note 3): 200 mA.
Features
Features: (1)16 Mbit Page Mode device; (2)Single power supply operation; (3)5 V-tolerant data, address, and control signals; (4)High performance read access times; (5)Power consumption (typical values at 5 MHz); (6)Minimum 1 million write cycles guarantee per sector; (7)20-year data retention; (8)Manufactured on 0.32 μm process technology; (9)Software command-set compatible with JEDEC standard; (10)CFI (Common Flash Interface) compliant; (11)Erase Suspend/Erase Resume.
