Product Summary

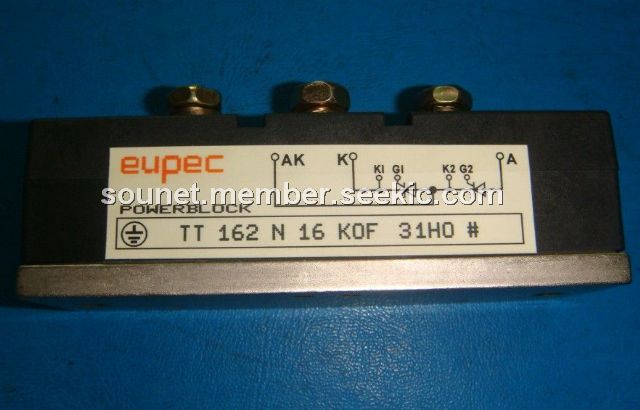

The TT162N16KOF is a Phase Control Thyristor Module.

Parametrics

TT162N16KOF absolute maximum ratings: (1)repetitive peak forward off-state and reverse voltages: 1200 V; (2)non-repetitive peak forward off-state voltage: 1200 V; (3)non-repetitive peak reverse voltage: 1300 V; (4)maximum RMS on-state current: 260 A; (5)average on-state current: 162 A; (6)surge current: 4400 A; (7)I2t-value: 135000 A2s; (8)critical rate of rise of on-state current: 150 A/μs; (9)critical rate of rise of off-state voltage: 500 V/μs.

Features

TT162N16KOF features: (1)Si-pellet with pressure contact; (2)internal insulation: AIN; (3)mounting torque: 6 Nm; (4)terminal connection torque: 6 Nm; (5)control terminals: A 2,8 x 0,8; (6)weight: 310 g; (7)creepage distance: 15 mm; (8)vibration resistance: 50 m/s2.

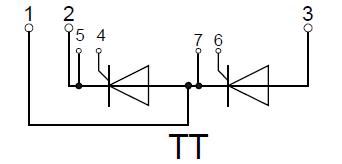

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TT162N16KOF
TT162N16KOF
Infineon Technologies
Discrete Semiconductor Modules 1600V 260A DUAL
Data Sheet
0-1: $80.45
1-5: $72.40
TT162N16KOF-A
TT162N16KOF-A
Infineon Technologies
SCRs PCT 1600V 162A
Data Sheet
0-1: $82.80
1-10: $74.40
TT162N16KOF-K
TT162N16KOF-K
Infineon Technologies
SCRs PCT 1600V 162A
Data Sheet
0-1: $82.80
1-10: $74.40
