Product Summary
The LT1076IR is a 2A monolithic bipolar switching regulator which requires only a few external parts for normal operation. The LT1076IR uses a true analog multiplier in the feedback loop. This makes the device respond nearly instantaneously to input voltage fluctuations and makes loop gain independent of input voltage. As a result, dynamic behavior of the LT1076IR is significantly improved over previous designs. The applications of the LT1076IR include Buck Converter with Output Voltage Range of 2.5V to 50V, Tapped-Inductor Buck Converter with 10A Output at 5V, Positive-to-Negative Converter, Negative Boost Converter and Multiple Output Buck Converter.
Parametrics
LT1076IR absolute maximum ratings: (1)Input Voltage: 45V; (2)Switch Voltage with Respect to Input Voltage: 64V; (3)Switch Voltage with Respect to Ground Pin (VSW Negative): 35V; (4)Feedback Pin Voltage: –2V, +10V; (5)Shutdown Pin Voltage (Not to Exceed VIN): 40V; (6)ILIM Pin Voltage (Forced): 5.5V; (7)Maximum Operating Ambient Temperature Range, Commercial: 0℃ to 70℃; Industrial: –40℃ to 85℃; Military: –55℃ to 125℃; (8)Maximum Operating Junction Temperature Range, Commercial: 0℃ to 125℃; Industrial: –40℃ to 125℃; Military: – 55℃ to 150℃; (9)Maximum Storage Temperature: –65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1076IR features: (1)5A Onboard Switch; (2)100kHz Switching Frequency; (3)Greatly Improved Dynamic Behavior; (4)Available in Low Cost 5 and 7-Lead Packages; (5)Only 8.5mA Quiescent Current; (6)Programmable Current Limit; (7)Operates Up to 60V Input; (8)Micropower Shutdown Mode.

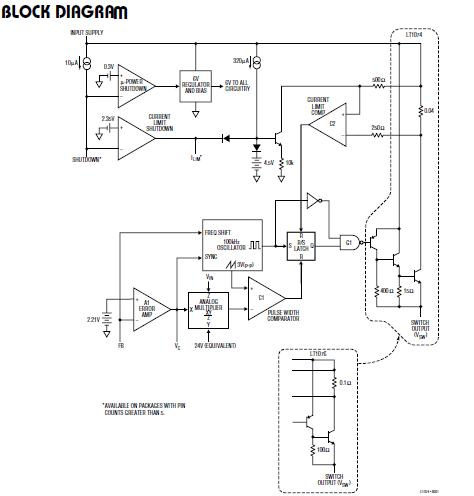

Diagrams
