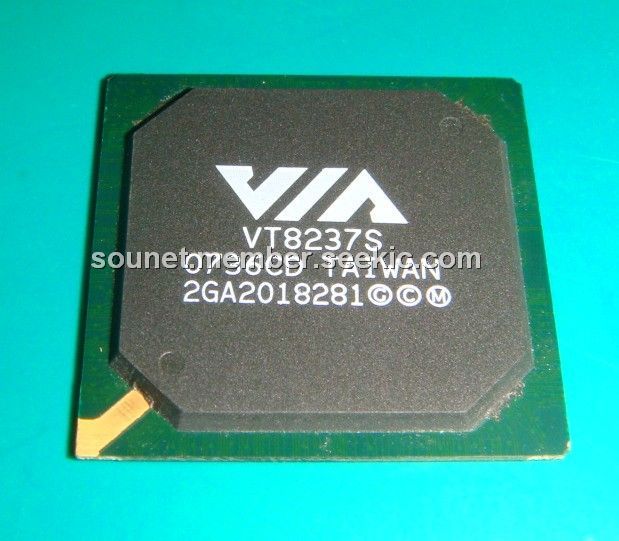

VT8237S

Product Summary

The VT8237S is a South Bridge. As a high integration, high performance, power-efficient, and high compatibility device, it supports Intel, AMD, and VIA / Cyrix based processor to PCI bus bridge functionality to make a complete Microsoft PC99-compliant PCI/LPC system. The VT8237S includes standard intelligent peripheral controllers: Master mode enhanced IDE controller with dual channel DMA engine and interlaced dual channel commands, Integrated LAN Fast Ethernet controller (MAC) with Media Independent Interface (MII) to external PHY, LPC (Low Pin Count) interface for BIOS ROM plus optional conventional BIOS ROM support, etc.

Parametrics

VT8237S absolute maximum ratings: (1)Storage temperature, TS: -55 to 125℃; (2)Operating temperature- Case, TC: 0 to 85℃; (3)Operating temperature - Ambient, TA: 0 to 70℃; (4)Reference Voltage, VREF: 0 to 5.5 Volts ; (5)Core Voltage, VCC: 0 to 3.6 Volts; (6)Suspend Voltage, VSUS: -0.5 to VCC + 0.3 Volts; (7)USB Voltage, VUSB: -0.5 to VCC + 0.3 Volts; (8)Hardware Monitor VoltageVHWM: -0.5 to VCC + 0.3 Volts; (9)LAN MII Voltage, VMII: -0.5 to VCC + 0.3 Volts; (10)LAN RAM Voltage, VRAM: -0.5 to VCC + 0.3 Volts; (11)PLL Voltage, VPLL: -0.5 to VCC + 0.3 Volts; (12)Battery Voltage, VBAT: -0.5 VCC + 0.3 Volts; (13)Input voltage (3.3V only inputs): -0.5 to VCC + 0.3 Volts; (14)Input voltage (5V tolerant inputs): -0.5 to VREF + 0.5 Volts.

Features

VT8237S features: (1)Transmit data buffer byte alignment for low CPU utilization; (2)Separate 2K byte FIFOs for receive and transmit of full Ethernet packets; (3)Flexible dynamically loadable EEPROM algorithm; (4)Physical, Broadcast, and Multicast address filtering using hashing function; (5)Flexible wakeup events: link status change, magic packet, unicast physical address match, predefined pattern match; (6)Software controllable power down; (7)Bus master programming interface for SFF-8038i rev.1.0 and Windows-95 / 98 / 2000 compliant; (8)Full scatter gather capability; (9)Support ATAPI compliant devices including DVD devices; (10)Support PCI native and ATA compatibility modes; (11)Complete software driver support.

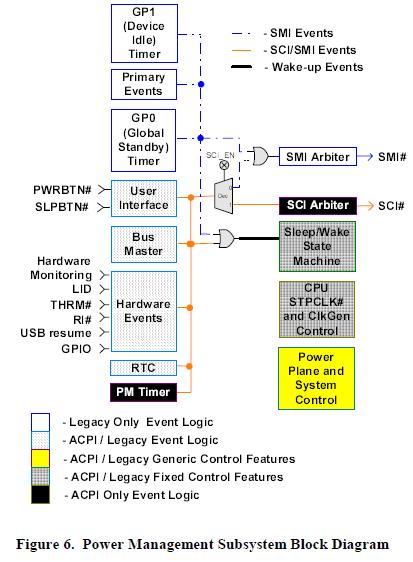

Diagrams
